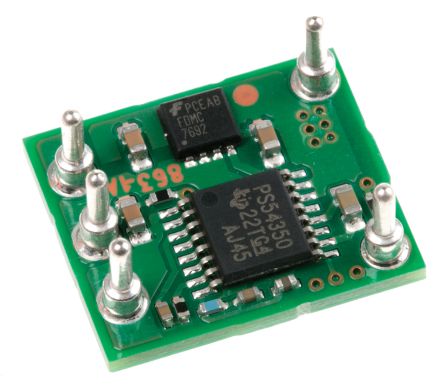

PTH08080WAH
| 制造商 | Texas Instruments Incorporated |
| 描述 | Module DC-DC 1-OUT 0.9V to 5.5V 2.25A 10W 5-Pin DIP Module Tray MODULE PIP .9-5.5V 2.25A HORZ TH PTH08080WAH, DC-DC Power Supply Module 4.5V Input,, 5-Pin, DIP Module DC/DC Converters 2.25A Wide Input/ Out Adj Mini Pwr Mdl POWER MODULE, MINI, 18V WIDE ADJ 2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module 直流-直流电源模块, 2.25A, 300 kHz, 5针 DIP 模块封装 |
| 分类 |
商业参数
| 产品 | Non-Isolated / POL | 产品类别 | DC/DC Converters |
| 标准包装数量 | Trays, Rail / Tube | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | 认证机构 | :- |
电气参数
| 输出端 | 1 | 频率 | :300kHz |
| 隔离 | Non-Isolated | 效率 | 93.5% |
| 最大功率 | 12W | 输出功率 | 10 W |
| 转换器类型 | :Non Isolated POL | 额定电压 | 0.9 to 5.5 V |
| 开通延迟时间 | Fixed | 输出电流 | 2.25 A |
| 供电电压 | :12V | 输出数量 | 1 |
| 最大功率（瓦特） | 12.4W | 开关稳压器 | Yes |
| 最小输入电压 | 0.9 ~ 5.5 V | 输出电压（最大） | :5.5V |
| 直流输入电压（最大） | :18V | 输出电流/通道 | 2.25 A |
| 输出电压（最小/固定） | :0.9V | 共模瞬态抗扰度（最小） | Industrial |
| 最大持续工作电压（MCOV） | :18V | ||
机械参数
| 深度 | 12.7 mm | 宽度 | 12.7mm |
| 高度 | 7.93mm | 长度 | 15.24mm |
| 重量 | 0.0001 | 包装方式 | Tray |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :5 | 封装形式 | 5DIP Module |
| 冷却的封装 | DIP Module | 总长度 | 15.24 mm |
| 包装数量 | 90 | TIW TRAY | 尺寸/外形 | 0.60" L x 0.50" W x 0.32" H (15.2mm x 12.7mm x 8.1mm) |
| 位数 | 5 | ||
产品信息
| 类型 | Step Down | 系列 | PTH08080W |
| 产品特性 | Enable Tracking | 软件 | SLTS235D |
| 基本单元 | :08080 | 图案编号 | Y |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 结工作温度 | 85C | ||
文档与媒体
相关型号
REG104FA-3.3KTTT
texas instruments
LDO Regulator Pos 3.3V 1A 6-Pin(5+Tab) TO-263 T/R IC REG LDO 3.3V 1A DDPAK REG104FA-3.3KTTT, Low Dropout Voltage Regulator, 1A, 3.3V ±2%, 2.1 to 15Vin, 6-Pin TO-263 LDO Voltage Regulators DMOS 1A LDO Reg IC, VOLTAGE REGULATOR Single Output LDO, 1.0A, Fixed(3.3V), Low Noise, Fast Transient Response Texas Instruments , LDO 调节器, 1A, 3.3 V输出 ±2%, 2.1 → 15 V输入, 5针 TO-263封装
SN65HVD08D
texas instruments
Single Transmitter/Receiver RS-485 8-Pin SOIC Tube IC TXRX RS485 3/5V 8-SOIC RS-485 Interface IC RS485 Wide Band TRANSCEIVER RS-485, 65HVD08, SOIC8 3.3/5-V RS-485 Transceiver Logic IC SOIC-8, SN65HVD08, SN65HVD08D, Texas Instruments Texas Instruments 10MBps 线路收发器, RS-485接口, 差分接收器信号, 3.3 V、5 V, 8针 SOIC封装
ADS5474IPFP
texas instruments
ADC Single Pipelined 400Msps 14-bit Parallel 80-Pin HTQFP EP Tray Analog to Digital Converters - ADC 14B 400 MSPS Single ADC Pipelined 400Msps 14-bit Parallel/LVDS 80-Pin HTQFP EP Tray IC ADC 14BIT 400MSPS 80-HTQFP ADC, 14BIT, 3.3/5V, 400MSPS, 80HTQFP 14-bit, 400 MSPS Analog-to-Digital Converter with Buffered Input
LP2980IM5-ADJ/NOPB
texas instruments
LDO Regulator Pos 1.23V to 15V 0.05A 5-Pin SOT-23 T/R IC REG LDO ADJ 50MA SOT23-5 LP2980IM5-ADJ/NOPB, Low Dropout Voltage Regulator, Adjustable 0.05A, 1.23 to 15V ±1%, 5-Pin SOT-23 LDO Voltage Regulators MICROPOWER 50 MA ULTRA LDO REGULATOR IC, V REG, LINEAR, ADJ, SMD Voltage stabiliser; LDO, adjustable; 1.2÷15V; SMD; SOT23-5 Micropower 50 mA Ultra Low-Dropout Adjustable Voltage Regulator in SOT-23 LDO voltage regulator 1.23...15 V SOT-23-5, LP2980, LP2980IM5-ADJ/NOPB, Texas Instruments Texas Instruments , LDO 调节器, 可调整的输出, 50mA, 1.23 → 15 V输出 ±1%, 5针 SOT-23封装
TLV2371IDBVT
texas instruments
OP Amp Single GP R-R I/O ±8V/16V 5-Pin SOT-23 T/R IC OPAMP GP 3MHZ RRO SOT23-5 TLV2371IDBVT, Operational Amplifier 3MHz R-R 3 to 15V, 5-Pin SOT-23 Operational Amplifiers - Op Amps 550-uA/Channel 3-MHz RRIO Op Amp OP Amp Single GP R-R I/O ?8V/16V 5-Pin SOT-23 T/R 550-uA/Channel 3-MHz RRIO Op Amp Operational Amplifier Single 3 MHz SOT-23-5, TLV2371, TLV2371IDBVT, Texas Instruments Texas Instruments 运算放大器, 3MHz 轨至轨, 3 → 15 V, 5针 SOT-23

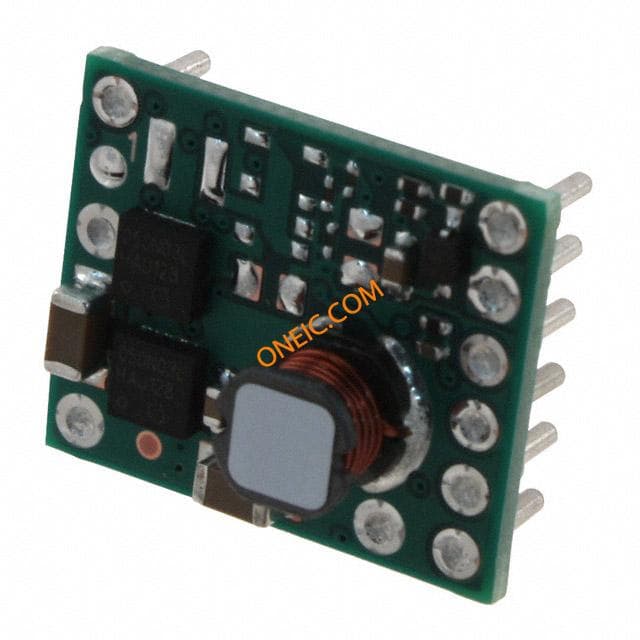

PTH08T230WAD
