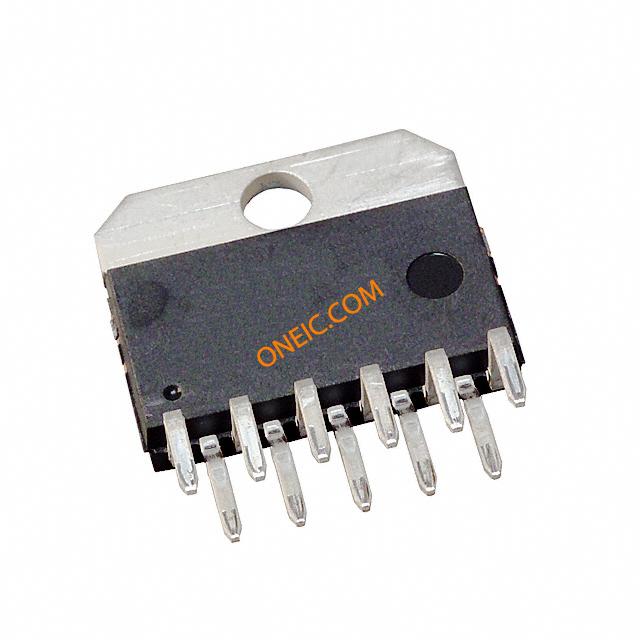

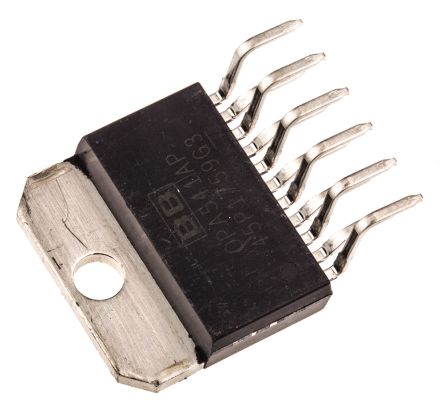

OPA541AP
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±35V/70V 11-Pin(11+Tab) TO-220 Tube IC OPAMP POWER 1.6MHZ TO220-11 OPA541AP, Operational Amplifier 1.6MHz, 24, 28V, 11-Pin TO-220 Operational Amplifiers - Op Amps Hi-Power Monolithic Op Amp OP Amp Single GP �35V/70V 11-Pin(11+Tab) TO-220 Tube OP AMP, HIGH POWER, TO-220-11, 541 Operational amplifier; 1.6MHz; 10÷35VDC; Channels:1; TO220 High Power Monolithic Operational Amplifier Operational Amplifier Single 1.6 MHz PP-11, OPA541, OPA541AP, Texas Instruments Texas Instruments 运算放大器, 1.6MHz, 24 V 28 V, 11针 TO-220 |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | 标准封装名称 | TO-220 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :541 | 抗辐射加固 | No |
电气参数
| 增益 | 97 dB | 压摆率 | 10@±35V V/us |
| 1kHz噪声电压 | 35 | 输出类型 | No |
| 失调漂移 | 2 | 输入功率 | Single/Dual |
| 上升时间（典型） | 6V/μs | 晶体管类型 | :High Voltage |
| 共模抑制比、电源抑制比（典型） | 95 dB | 输出电流 | 20mA |
| 供电电压 | 20 V | 供电类型 | Single|Dual |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 4pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 2mV |
| 增益带宽积 | 1.6 MHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 25 | 输入偏置电流（最大） | 0.00005@±35V uA |
| 输出电流/通道 | 10A | 输入失调电流（最大） | 0.00003@±35V |
| 供电电压 (Vcc/Vdd) | 70 | 25°C失调电压 | 10 |
| 电源电压范围（典型） | �30 V | 频段（低/高） | 1.6MHz |
| 输入失调电压（最大） | 10@±35V mV | 电压输出差（典型值）@ 距离 | 97 dB |
机械参数
| 宽度 | 10.7 | 重量 | 0.002 |
| 带宽 | :1.6MHz | 包装方式 | Tube |
| 插片宽度 | Tab | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :11 |
| 封装形式 | 11TO-220 | 冷却的封装 | TO-220 |
| 材料表面处理 | :- | 总长度 | 20.02 |
| 包装数量 | TO-220 | 位数 | 11 |
| 外壳尺寸-插件 | 4.5 | 供应商器件封装 | TO-220-11 |
产品信息
| SPG | 25 | 类型 | General Purpose Amplifier |
| 系列 | OPA541 | 关断 | No |
| 软件 | SBOS153A | 基本单元 | :541 |
| 技术 | BiFET | 制造商全称 | High Output Current Amplifier |
| 放大器类型 | Power | 单元数量 | 1 |
| 电路数 | 1 | 使用的IC/零件 | View |
| 印刷电路板数量 | 11 | ||
环境参数
| 测试温度 | -25 to 85 | 工作温度 | -25 to 85 °C |
文档与媒体
相关型号
OPA549T
texas instruments
OP Amp Single GP ±30V/60V 11-Pin(11+Tab) TO-220 Tube IC OPAMP POWER 900KHZ TO220-11 Operational Amplifiers - Op Amps Hi-Vltg Hi-Current Exc Output Swing OP Amp Single GP �30V/60V 11-Pin(11+Tab) TO-220 Tube OP AMP, 0.9MHZ, 9V/US, 1000UV, TO220-11 IC, OP-AMP, 900KHZ, 9V/ us, TO-220-11 Operational amplifier; 900kHz; 8÷60VDC; Channels:1; TO220 High-Voltage, High-Current Op Amp, Excellent Output Swing Operational Amplifier Single 900 kHz PP-11, OPA549, OPA549T, Texas Instruments
_4040208%5EC.jpg&w=3840&q=75)

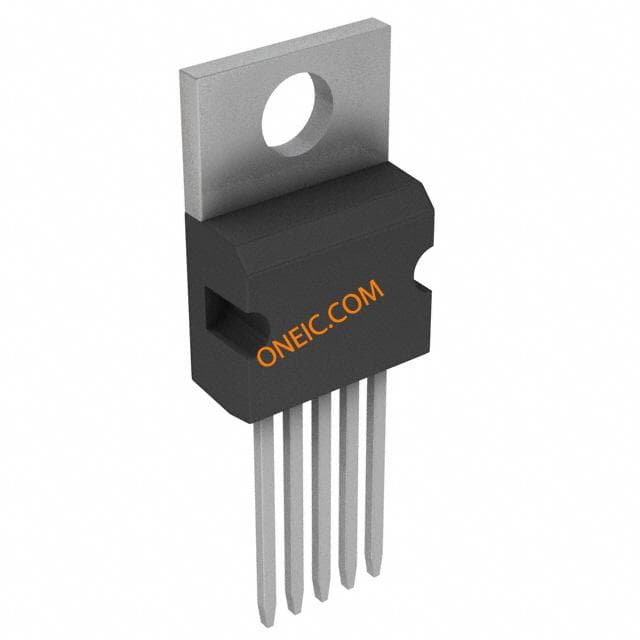

OPA544T
texas instruments
OP Amp Single GP ±35V 5-Pin(5+Tab) TO-220 Tube IC OPAMP POWER 1.4MHZ TO220-5 OPA544T, Operational Amplifier 1.4MHz, 5-Pin TO-220 Operational Amplifiers - Op Amps Hi-Vltg Hi-Current Op Amp OP Amp Single GP �35V 5-Pin(5+Tab) TO-220 Tube OP AMP, HIGH VOLT 2A, TO-220-5, 544 Operational amplifier; TO220-5 High-Voltage, High-Current Operational Amplifier Operational Amplifier Single 1.4 MHz TO-220-5, OPA544, OPA544T, Texas Instruments Texas Instruments 运算放大器, 1.4MHz, 5针 TO-220

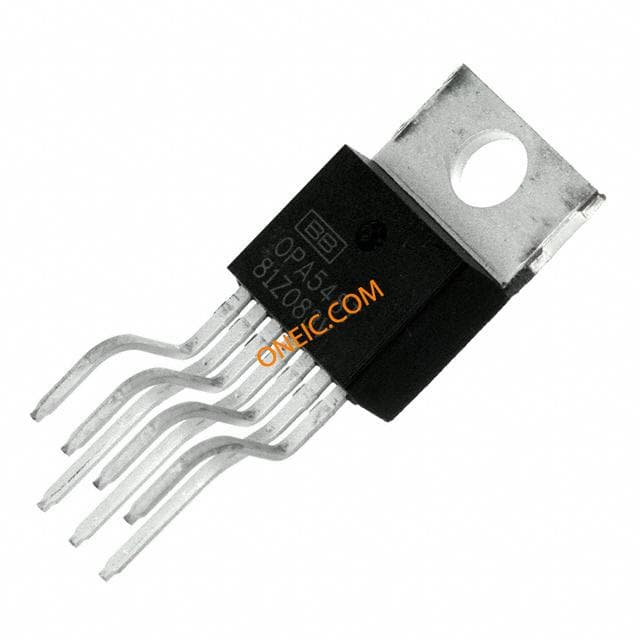

OPA548TG3
