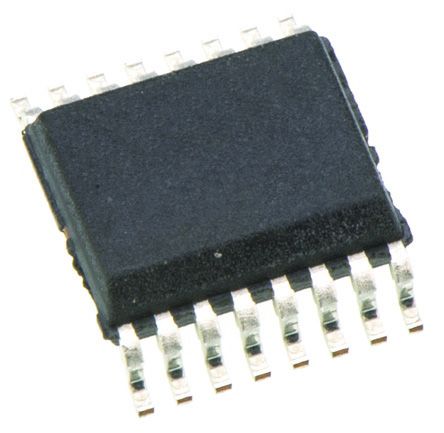

OPA3695IDBQ
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Triple Current Fdbk ±6V/12V 16-Pin SSOP Tube IC OPAMP CFA 1GHZ 16SSOP Operational Amplifiers - Op Amps Ultra-WB Crnt-Feed back Op Amp OP Amp Triple Current Fdbk �6V/12V 16-Pin SSOP Tube IC, OP-AMP CFB 1GHZ TRIPLE 16QSOP Ultra-Wideband, Current-Feedback Operational Amplifier with Disable Texas Instruments 三 电流反馈 运算放大器, 900MHz, 3.5 → 12 V, 16针 SSOP |
| 分类 |
商业参数
| 其他名称 | 296-23389-5 | 产品类别 | Operational Amplifiers - Op Amps |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 2 | 电源抑制比 | 56 dB |
| 压摆率 | 1700@5V V/us | 输出类型 | No |
| 输入功率 | Single/Dual | 建立时间 | 10 |
| 平带噪声电压 | 1.8 | 晶体管类型 | :Current Feedback |
| 共模抑制比、电源抑制比（典型） | 51 dB | 输出电流 | 12.9mA |
| 供电电压 | 3.5 V | 供电类型 | Single|Dual |
| 通道数量 | 3 | 元件数量 | 3 |
| 输入偏置电流 | 20µA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :3 | 最小输入电压 | 300µV |
| 增益带宽积 | :1000MHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 13.4 | 输入偏置电流（最大） | 40@5V uA |
| 输出电流/通道 | 120mA | 供电电压 (Vcc/Vdd) | 12 |
| 输入噪声电流密度 | 22@5V pA/rtHz | 输入噪声电压密度 | 1.8@5V nV/rtHz |
| 电源电压范围（典型） | �3/�5 V | 输入失调电压（最大） | 3.5@5V mV |
机械参数
| 宽度 | 4(Max) | 重量 | 0.002603 oz |
| 带宽 | :1GHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| -3dB带宽 | 1GHz | 安装样式 | SMD/SMT |
| 引脚数 | :16 | 封装形式 | 16SSOP |
| 冷却的封装 | SSOP | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 5(Max) | 包装数量 | SSOP |
| 位数 | 16 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 16-SSOP | ||
产品信息
| 类型 | Current Feedback Amplifier | 系列 | OPA3695 |
| 关断 | Yes | 软件 | SBOS355A |
| 基本单元 | :3695 | 技术 | Bipolar |
| 架构 | Current Feedback | 制造商全称 | High Speed Amplifier |
| 放大器类型 | Current Feedback | 电路数 | 3 |
| 使用的IC/零件 | View | 印刷电路板数量 | 16 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
