点击放大查看

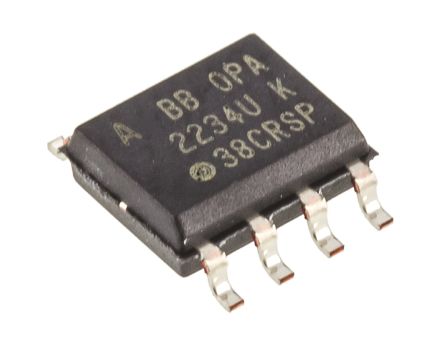

OPA2234UA
| 制造商 | |
| 描述 | OP Amp Dual GP ±18V/36V 8-Pin SOIC Tube IC OPAMP GP 350KHZ 8SOIC OPA2234UA, Dual Precision Op Amp 0.35MHz 3 to 28V, 8-Pin SOIC Operational Amplifiers - Op Amps Low Power Prec Sngl-Sply Oper Amp OP Amp Dual GP �18V/36V 8-Pin SOIC Tube OP AMP, DUAL LOW POWER, SMD, 2234 Operational amplifier; 350kHz; 2.7÷36VDC; Channels:2; SO8 Low Power, Precision Single-Supply Operational Amplifiers Operational Amplifier Dual 350 kHz SO-8, OPA2234, OPA2234UA, Texas Instruments Texas Instruments 双 运算放大器, 350kHz, 3 → 28 V, 8针 SOIC Precision Amplifiers Low Power Prec Sngl-Sply Oper Amp |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :2234 | 抗辐射加固 | No |
电气参数
| 增益 | 120 dB | 电源抑制比 | 110.46 dB |
| 压摆率 | 0.2@5V V/us | 1kHz噪声电压 | 25 |
| 输出类型 | No | 失调漂移 | 0.5 |
| 输入功率 | Single/Dual | 上升时间（典型） | 200mV/μs |
| 晶体管类型 | :Low Power | 共模抑制比、电源抑制比（典型） | 86 dB |
| 输出电流 | 275µA | 供电电压 | 2.7 V |
| 供电类型 | Single|Dual | 通道数量 | 2 |
| 元件数量 | 2 | 输入偏置电流 | 12nA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :2 |
| 最小输入电压 | 70µV | 增益带宽积 | 0.35 MHz |
| 轨到轨工作 | No | 静态电流 (Iq) | 0.3 |
| 输入偏置电流（最大） | 0.05@5V uA | 输出电流/通道 | 22mA |
| 输入失调电流（最大） | 0.005@5V | 供电电压 (Vcc/Vdd) | 36 |
| 25°C失调电压 | 0.1 | 输入噪声电流密度 | 0.08@5V pA/rtHz |
| 输入噪声电压密度 | 25@5V nV/rtHz | 频段（低/高） | 350kHz |
| 输入失调电压（最大） | 0.25@5V mV | 电压输出差（典型值）@ 距离 | 120 dB |
机械参数
| 宽度 | 4(Max) | 重量 | 0.002677 oz |
| 带宽 | :350kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5(Max) |
| 包装数量 | SOIC | 位数 | 8 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 8-SOIC |
产品信息
| SPG | 50 | 类型 | General Purpose Amplifier |
| 系列 | OPA2234 | 关断 | No |
| 软件 | SBOS055B | 基本单元 | :2234 |
| 技术 | Bipolar | 制造商全称 | Low Offset Voltage Amplifier |
| 放大器类型 | General Purpose | 单元数量 | 1 |
| 电路数 | 2 | 使用的IC/零件 | View |
| 印刷电路板数量 | 8 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 125 °C |
