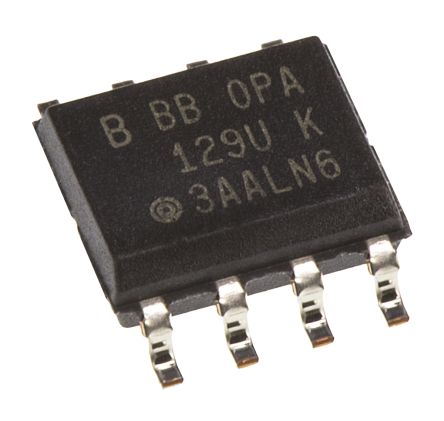

点击放大查看
OPA129UB
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 1MHZ 8SOIC Operational Amplifiers - Op Amps Ultra-Low Bias Current Difet OP Amp Single GP �18V 8-Pin SOIC Tube OP-AMP, PRECISION, 1MHZ, 2.5V/US, SOIC-8 Ultra-Low Bias Current Difet Operational Amplifier Operational Amplifier Single 1 MHz SOIC-8, OPA129, OPA129UB, Texas Instruments Texas Instruments 运算放大器, 1MHz, 8针 SOIC |
| 分类 |
商业参数
| 产品类别 | Operational Amplifiers - Op Amps | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423300 | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 增益 | 120 dB | 压摆率 | 2.5@±15V V/us |
| 1kHz噪声电压 | 17 | 输出类型 | No |
| 失调漂移 | 3 | 输入功率 | Dual |
| 晶体管类型 | :Precision | 共模抑制比、电源抑制比（典型） | 80 dB |
| 输出电流 | 1.2mA | 供电电压 | ±5 V |
| 通道数量 | 1 | 元件数量 | 1 |
| 输入偏置电流 | 0.03pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :1 | 最小输入电压 | 500µV |
| 增益带宽积 | 1 MHz | 静态电流 (Iq) | 1.8 |
| 输入偏置电流（最大） | 0.0000001@±15V uA | 输出电流/通道 | 10mA |
| 供电电压 (Vcc/Vdd) | 36 | 25°C失调电压 | 2 |
| 输入噪声电流密度 | 0.0001@±15V pA/rtHz | 输入噪声电压密度 | 85@±15V nV/rtHz |
| 电源电压范围（典型） | �9/�12/�15 V | 输入失调电压（最大） | 2@±15V mV |
| 电压输出差（典型值）@ 距离 | 120 dB | ||
机械参数
| 重量 | 0.002677 oz | 带宽 | :1MHz |
| 包装方式 | Tube | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 包装数量 | 75 | TUBE |
| 位数 | 8 | 供应商器件封装 | 8-SOIC |
产品信息
| 类型 | General Purpose Amplifier | 系列 | OPA129 |
| 关断 | No Shutdown | 软件 | SBOS026A |
| 技术 | BiFET | 放大器类型 | General Purpose |
| 电路数 | 1 | 使用的IC/零件 | View |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -55 to 125 °C |
