点击放大查看

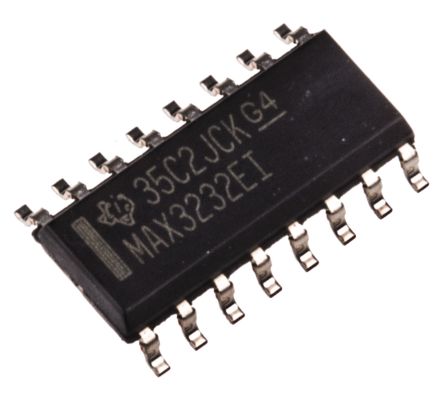

MAX3232EID
| 制造商 | Texas Instruments Incorporated |
| 描述 | Dual Transmitter/Receiver RS-232 16-Pin SOIC IC RS232 3V5.5V 15KVESD 16-SOIC MAX3232EID, Line Transceiver, EIA/TIA-232-F, RS-232 2-TX 2-RX 2-TRX, 3.3V, 16-Pin SOIC RS-232 Interface IC 3-5.5V MultiCh Line Driver/Receiver 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With +/-15kV IEC ESD Protection Interface IC RS232 SOIC-16, MAX3232, MAX3232EID, Texas Instruments Texas Instruments 250kbps 线路收发器, RS-232接口, 2-TX 2-RX, 3.3 V, 16针 SOIC封装 |
| 分类 |
商业参数
| 产品 | RS-232 Transceivers | 产品类别 | RS-232 Interface IC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| IEC 61000-4-2 | IEC-61000-4-2 SUPPORT | ESD保护 | 15 |
电气参数
| 数据速率 | 250 Kbps | 接口 | EIA/TIA-232-F|RS-232 |
| 输入信号 | Single-Ended | 信号类型 | Single-Ended |
| 输出信号 | 单端 | 输入功率 | Single |
| 传输速率(数据率) | 250 | 数据速率（最大） | Point-to-Point |
| 输出电流 | 1 mA | 供电电流 | 1 mA |
| 供电电压 | 3.3|5 V | 输出数量 | 2 |
| 供电类型 | Single | 接收器迟滞 | 300mV |
| 输入偏置电流 | 1 | 最大额定电流 | Catalog |
| 逻辑电压 - VIL, VIH | 3.3 | 电源电压范围（典型） | Not Required V |
| 每线接收器数量 | 1 | 每极负载侧连接方式 | 1 |
| 共模瞬态抗扰度（最小） | Industrial | ||
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 9.9mm | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | 16 |
| 封装形式 | 16SOIC | 冷却的封装 | SOIC |
| 总长度 | 10(Max) | 包装数量 | SOIC |
| 尺寸/外形 | 9.9 x 3.91 x 1.58mm | 位数 | 16 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 16-SOIC N |
产品信息
| 类型 | Transceiver | 双工模式 | Full |
| 系列 | MAX3232E | 已删除 | Compliant |
| 功能 | Line Transmitter/Receiver | 协议 | RS232 |
| 软件 | SLLS664C | 制造商全称 | Texas Instruments |
| 通信接口 | RS-232 | 图案编号 | Y |
| 驱动器数量 | 2 | 功能框图 | fbd_slls664c.gif |
| 使用的IC/零件 | View | 接收器数量 | 2 |
| 印刷电路板数量 | 16 | 发射器数量 | 2 |
| 驱动器/接收器数量 | 2/2 | 发射器/接收器数量 | 1 |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
