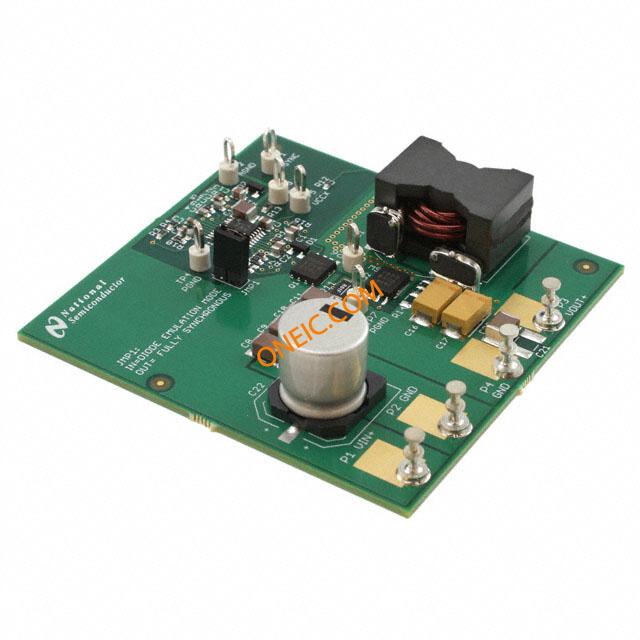

LM5116-12EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | WIDE RANGE SYNCHRONOUS BUCK CONTROLLER Power Management IC Development Tools LM5116-12 EVAL BOARD Evaluation Kit For Wide Range Synchronous Buck Controller EVAL BOARD FOR LM5116-12 LM5116, BUCK CONTROLLER, EVAL BOARD |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | LM511612EVALNOPB |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| 额定电压 | 15 V to 80 V | 输出电流 | 5 A |
| 元件数量 | :LM5116 | 稳压器拓扑 | Buck |
| 开关频率 | 250kHz | 最小输入电压 | 12V |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 2.65 in x 2.55 in x 0.7 in | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :(Not Applicable) | 功能 | The LM5116-12 evaluation board is designed to provide the design engineer with a fully functional power converter based on Emulated Current Mode Control to evaluate the LM5116 controller IC |
| 套件类型 | :Power Management | 套件内容 | :Eval Board LM5116-12 |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LM5116-12 | 射频系列/标准 | LM5116 |
| 使用的IC/零件 | LM5116 | 芯片组制造商 | :Texas Instruments |
| 应用细节 | :Synchronous Buck Controller | ||
环境参数
| 机械寿命 | New At Mouser | ||
