点击放大查看
LM5008EVAL
| 制造商 | Texas Instruments Incorporated |
| 描述 | LM5008 Evaluation Board Designed To Provide The Design Engineer With A Fully Functional Step Down Switching Regulator Power Management IC Development Tools LM5008 EVAL BOARD EVALUATION BOARD FOR LM5008 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | *LM5008EVAL |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
电气参数
| 额定电压 | 12 V to 95 V | 输出电流 | 0.3 A |
| 稳压器拓扑 | Buck | 最小输入电压 | 10V |
机械参数
| 电路板厚度 | Fully Populated | 尺寸/外形 | 31.9 in x 44.4 in |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | High Voltage (100 V) Step Down Switching Regulator | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | LM5008 |
| 射频系列/标准 | LM5008 | 使用的IC/零件 | LM5008 |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | + 85 C |
文档与媒体
相关型号

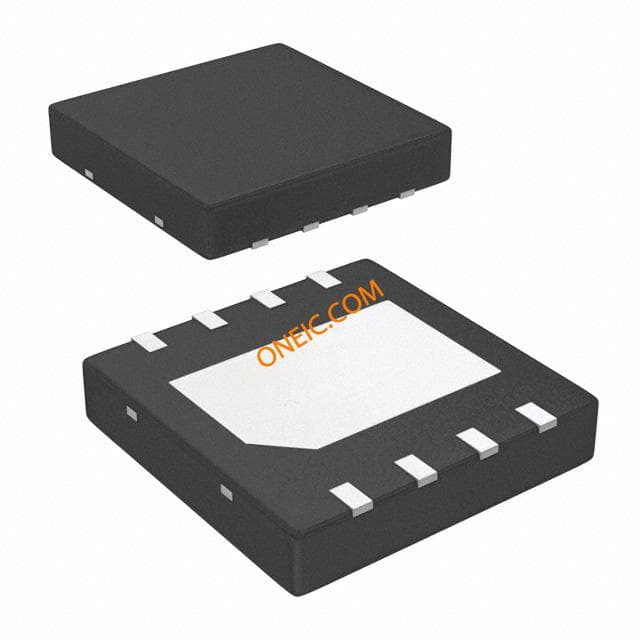

LM5008SD/NOPB
texas instruments
Conv DC-DC Single Step Down 9.5V to 95V 8-Pin LLP EP T/R IC REG BUCK ADJ 0.35A DL 8LLP Voltage Regulators - Switching Regulators Hi Vtg 100V SD Switching Reg 9.5-95V Wide Vin, 350mA Constant On-Time Non-Synchronous Buck Regulator Switching Voltage Regulators Hi Vtg 100V SD Switching Reg
LM5008SDC/NOPB
texas instruments
Conv DC-DC Single Step Down 9.5V to 95V 8-Pin LLP EP T/R IC REG BUCK ADJ 0.35A DL 8LLP LM5008SDC/NOPB, DC-DC Converter, 73V Adjustable, 2.5 to 73V, Step Down, 0.8MHz, 8-Pin LLP Voltage Regulators - Switching Regulators Hi Vtg 100V SD Switching Reg 9.5-95V Wide Vin, 350mA Constant On-Time Non-Synchronous Buck Regulator Texas Instruments 直流-直流转换器, 降压, 500mA, 9.5 → 95 V输入, 2.5 → 73 V输出, 0.8 MHz, 8针 LLP封装 Switching Voltage Regulators Hi Vtg 100V SD Switching Reg
LM5008SD
Texas Instruments
DC/DC Switching Converters IC REG BUCK ADJ 0.35A DL 8LLP Voltage Regulators - Switching Regulators 9.5-95V Wide Vin, 350mA Constant On-Time Non-Synchronous Buck Regulator Switching Voltage Regulators 9.5-95V Wide Vin, 350mA Constant On-Time Non-Synchronous Buck Regulator 8-WSON
LM5008SDCX
Texas Instruments
DC/DC Switching Converters IC REG BUCK ADJ 0.35A DL 8LLP

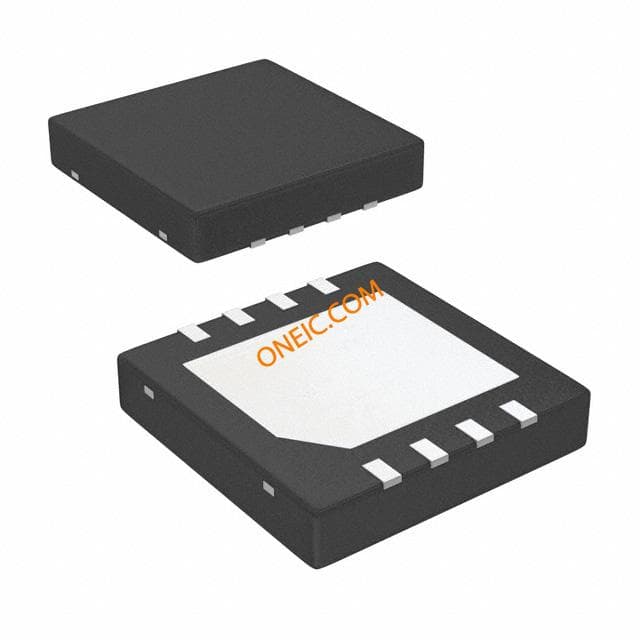

LM5008SDX
