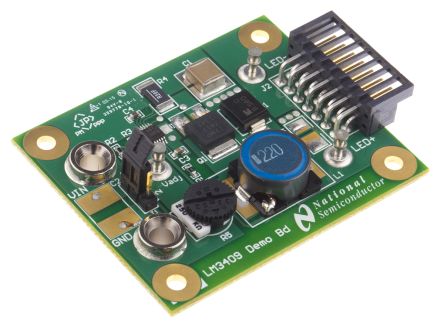

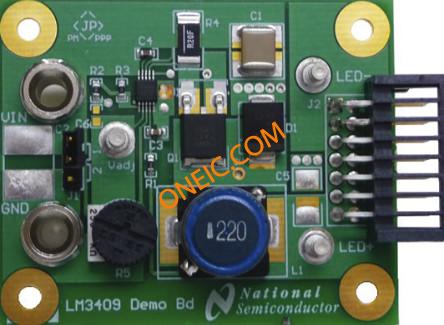

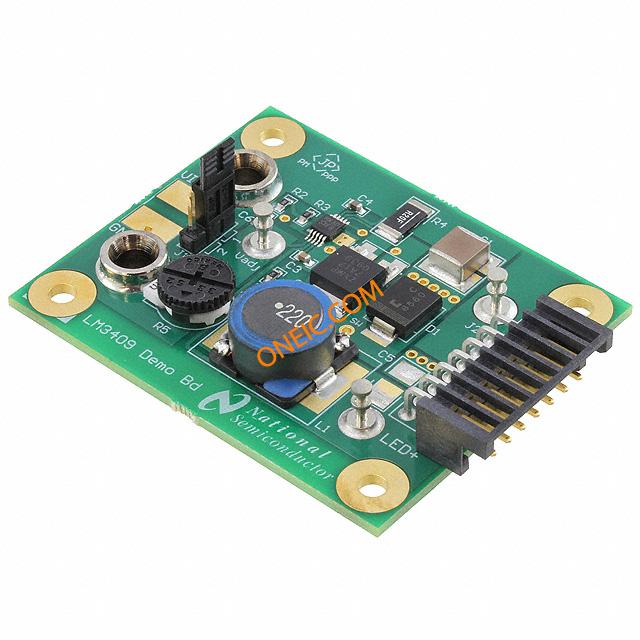

LM3409EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For PFET Buck Controller For High Power LED Drives Power Management IC Development Tools LM3409 EVAL BOARD EVAL BOARD FOR LM3409 LM3409EVAL/NOPB, Development Kit, Power Management, LM3409 Evaluation Board LED Lighting Development Tools LM3409 EVAL BOARD LM3409, LED DRIVER, BUCK CONTROLLER, EVAL BOARD Texas Instruments 电源管理 开发套件 |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 其他名称 | LM3409EVALNOPB |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | Boxed |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423190 |
电气参数
| 调光方式 | :PWM | 内核大小 | :LM3409 |
| 额定电压 | 6 V to 42 V | 输出电流 | 1 A |
| 供电电压 | 42 V | 输出数量 | :1 |
| 最小输入电压 | 15V | 输出电流/通道 | 1A |
| 最大持续工作电压（MCOV） | :75V | ||
机械参数
| 重量 | 0 | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | Dimmable | 拓扑 | :Buck (Step Down) |
| 技术 | Power Management | 套件内容 | LM3409 Evaluation Board |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | LM3409 | 射频系列/标准 | LM3409 |
| 使用的IC/零件 | LM3409 | 适用产品/相关产品 | LM3409 |
环境参数
| 机械寿命 | New At Mouser | ||
