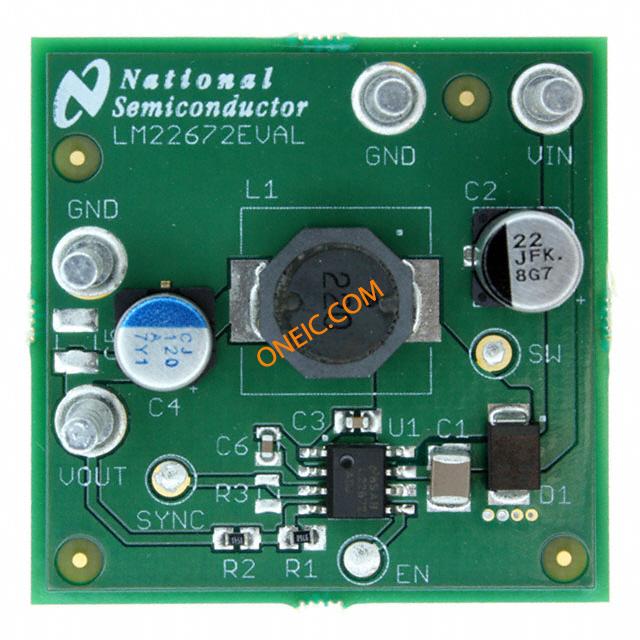

LM22672EVAL/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | 42V, 1A SIMPLE SWITCHER, STEP-DOWN VOLT Power Management IC Development Tools LM22672 EVAL BOARD BOARD EVALUATION FOR LM22672 EVAL BOARD, LM22672 3.3V, 1A STEP-DOWN REGULATOR |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85423990 |
电气参数
| 额定电压 | 4.5 V to 42 V | 输出电流 | 1 A |
| 元件数量 | :LM22672 | 稳压器拓扑 | Buck |
| 开关频率 | 500kHz | 最小输入电压 | 3.3V |
机械参数
| 重量 | 0 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 1.5 in x 1.5 in | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | The LM22672 evaluation board is configured to provide an output voltage of 3.3V up to 1A load current with an input voltage range of 4.5V to 42V | 套件类型 | :Power Management |
| 套件内容 | :Evaluation Board for LM22672 Simple Switcher | 主要用途 | DC/DC, Step Down |
| 输出及类型 | 1, Non-Isolated | 工具类型/特性 | LM22672 |
| 射频系列/标准 | LM22672 | 使用的IC/零件 | LM22672 |
| 适用产品/相关产品 | LM22672, LM22672-Q1, LM22675, LM2675-Q1 | ||
环境参数
| 机械寿命 | New At Mouser | 工作温度 | + 50 C |
文档与媒体
相关型号
LM22672MRE-ADJ/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 8-Pin PSOP EP T/R IC REG BUCK ADJ 1A 8SOPWRPAD LM22672MRE-ADJ/NOPB, Switching Regulator,, Buck Controller 1A, Adjustable, 1.285V min., 1000kHz, 8-Pin PSOP EP Voltage Regulators - Switching Regulators 1A STEP-DOWN VLTG REG IC, SW REG 1A SIMPLE SWITCHER®, Step-Down Voltage Regulator with Adjustable Frequency Switching Regulator 1 A SO-8 Power PAD, LM22672, LM22672MRE-ADJ/NOPB, Texas Instruments Texas Instruments 降压 ，反相 开关稳压器, 1A, 可调输出, 最低 1.285 V, 1000 kHz, 8针 PSOP封装 Switching Voltage Regulators 1A STEP-DOWN VLTG REG
LM22672MRX-ADJ/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 8-Pin PSOP EP T/R IC REG BUCK ADJ 1A 8SOPWRPAD Voltage Regulators - Switching Regulators 1A SIMPLE SWITCHER®, Step-Down Voltage Regulator with Adjustable Frequency Switching Voltage Regulators 1A SIMPLE SWITCHER?, Step-Down Voltage Regulator with Adjustable Frequency 8-SO PowerPAD -40 to 125
LM22672MRX-5.0/NOPB
Texas Instruments Incorporated
. LM22672MRX-5.0/NOPB - Buck Switching Regulator IC Positive Fixed 5V 1 Output 1A 8-PowerSOIC (0.154", 3.90mm Width) from Texas Instruments. from now!
LM22672MRE-5.0/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 8-Pin PSOP EP T/R IC REG BUCK 5V 1A 8SOPWRPAD LM22672MRE-5.0/NOPB, DC-DC Converter, 5V Step Down, 1MHz, 8-Pin PSOP Voltage Regulators - Switching Regulators 1A STEP-DOWN VLTG REG 1A SIMPLE SWITCHER®, Step-Down Voltage Regulator with Adjustable Frequency Texas Instruments 直流-直流转换器, 降压, 1A, 4.5 → 42 V输入, 1 MHz, 8针 PSOP封装 Switching Voltage Regulators 1A STEP-DOWN VLTG REG
LM22672MR-ADJ/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 8-Pin PSOP EP Rail Conv DC-DC Single Step Down 4.5V to 42V 8-Pin HSOP EP Rail IC REG BUCK ADJ 1A 8SOPWRPAD LM22672MR-ADJ/NOPB, Switching Regulator,, Buck Controller 1A, Adjustable, 1.285V min., 1000kHz, 8-Pin PSOP EP Voltage Regulators - Switching Regulators 1A SD Vtg Reg DC-DC CONV, BUCK, 500KHZ, HSOP-8 1A SIMPLE SWITCHER®, Step-Down Voltage Regulator with Adjustable Frequency Switching Regulator 1 A SO-8 Power PAD, LM22672, LM22672MR-ADJ/NOPB, Texas Instruments Texas Instruments 降压 ，反相 开关稳压器, 1A, 可调输出, 最低 1.285 V, 1000 kHz, 8针 PSOP封装 Switching Voltage Regulators 1A SD Vtg Reg
LM22672MR-5.0/NOPB
texas instruments
Conv DC-DC Single Step Down 4.5V to 42V 8-Pin PSOP EP Rail IC REG BUCK 5V 1A 8SOPWRPAD LM22672MR-5.0/NOPB, DC-DC Converter, 5V Step Down, 1MHz, 8-Pin PSOP Voltage Regulators - Switching Regulators 1A SD Vtg Reg Conv DC-DC Single Step Down 4.5V to 42V 8-Pin HSOP EP Rail DC-DC CONV, BUCK, 500KHZ, HSOP-8 1A SIMPLE SWITCHER®, Step-Down Voltage Regulator with Adjustable Frequency Texas Instruments 直流-直流转换器, 降压, 1A, 4.5 → 42 V输入, 1 MHz, 8针 PSOP封装 Switching Voltage Regulators 1A SD Vtg Reg
