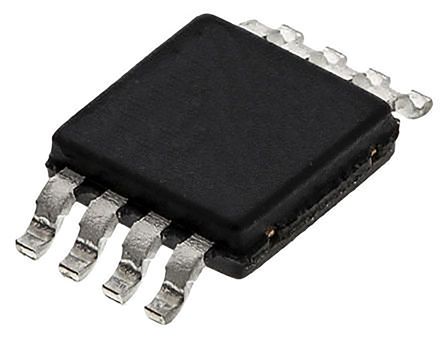

DAC8552IDGKT
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 2-CH Resistor-String 16-bit 8-Pin VSSOP T/R Digital to Analog Converters - DAC 16-Bit Dual Channell DAC IC DAC 16BIT DUAL 8VSSOP 16-Bit, Dual-Channel, Ultralow Glitch, Voltage Output, Digital to Analog Converter D/A converter IC 16 Bit MSOP-8, DAC8552, DAC8552IDGKT, Texas Instruments Texas Instruments 双 16 位 DAC, 200ksps, Serial (SPI/QSPI/Microwire)接口, 8针 MSOP封装 |
| 分类 |
商业参数
| 产品 | Digital to Analog Converters | 其他名称 | 296-20676-2 |
| 产品类别 | Digital to Analog Converters - DAC | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 250 | 标准封装名称 | SSOP |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 输出端 | Voltage output | 数据速率 | 200ksps |
| 接口 | Serial (3-Wire, SPI, QSPI, Microwire) | 信噪比 | 95(Typ) dB |
| 满量程 | ±0.5 %FSR | 分辨率 | 16 Bit |
| 输出类型 | Voltage | 输出范围 | 0 |
| INL/DNL（LSB） | ±12 LSB | 输入功率 | Single |
| 建立时间 | 12(Typ) us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 16 |
| 基准类型 | Ext | 数据速率（最大） | 200 Ksps |
| DAC数量 | 2 | 供电电压 | 5.5 V |
| 数字I/O线数 | 串行 (SPI/QSPI/Microwire) | 失真额定值（如THD） | +/- 12 LSB |
| 输出数量 | 2 | 供电类型 | Single |
| 电压基准 | External | 通道数量 | 2 |
| 采样频率 | 200 kS/s | 最大额定电流 | Catalog |
| 供电电源 | Single Supply | 增益带宽积 | 0.2 |
| 平均正向功率 | 3 | 输出数量与类型 | 2 Voltage, Unipolar; 2 Voltage, Bipolar |
| 采样率（每秒） | 200k | 电源电压范围（典型） | Not Required V |
| 精度 - 电压表；电流表 | ±0.5%FSR | ||
机械参数
| 宽度 | 3mm | 高度 | 0.97mm |
| 长度 | 3mm | 重量 | 0.000917 oz |
| 包装方式 | Reel | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 8 | 封装形式 | 8VSSOP |
| 冷却的封装 | VSSOP | 总长度 | 3.1(Max) |
| 包装数量 | VSSOP | 尺寸/外形 | 3 x 3 x 0.97mm |
| 位数 | 8 | 外壳尺寸-插件 | 0.95(Max) |
| 供应商器件封装 | 8-VSSOP | 外壳尺寸-插入件（转换至） | 电阻串 |
产品信息
| 设计类型 | 2 Channel | 系列 | DAC8552 |
| 功能 | Y | 软件 | SLAS430A |
| 架构 | Resistor-String | 制造商全称 | Texas Instruments |
| 总线连接 | 3 wire | 开发套件 | DAC8552EVM |
| 功能框图 | fbd_slas430a.gif | 使用的IC/零件 | View |
| 其他规格 | 12µs | 印刷电路板数量 | 8 |
| A/D转换器数量 | 2 | ||
环境参数
| 测试温度 | -40 to 105 | 工作温度 | -40 to 105 °C |
| 结工作温度 | 105C | ||
