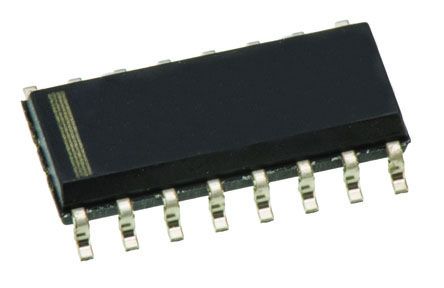

DAC7714UB
| 制造商 | Texas Instruments Incorporated |
| 描述 | DAC 4-CH R-2R 12-bit 16-Pin SOIC Tube IC 12BIT QUAD VOUT SER 16-SOIC Digital to Analog Converters - DAC Quad Ser In 12-Bit Voltage Output Quad, Serial Input, 12-Bit, Voltage Output Digital-To-Analog Converter Texas Instruments 四 12 位 DAC, 89ksps, 串行接口, 16针 SOIC封装 |
| 分类 |
商业参数
| 产品 | Digital to Analog Converters | 产品类别 | Digital to Analog Converters - DAC |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 数据速率 | 89ksps | 接口 | Serial |
| 满量程 | ±2 LSB | 分辨率 | 12 Bit |
| 输出类型 | Voltage | 输出范围 | -10 |
| INL/DNL（LSB） | ±1 LSB | 输入功率 | Single/Dual |
| 建立时间 | 10 us | 转换器类型 | General Purpose |
| 数据接口 | Serial | 位数 | 12 |
| 基准类型 | Ext | 数据速率（最大） | 89 Ksps |
| DAC数量 | 4 | 供电电压 | 15.75 V |
| 数字I/O线数 | 串行 | 失真额定值（如THD） | +/- 1 LSB |
| 输出数量 | 4 | 供电类型 | Single|Dual |
| 电压基准 | External | 通道数量 | 4 |
| 采样频率 | 89 kS/s | 最大额定电流 | Catalog |
| 供电电源 | Dual ± | 增益带宽积 | 0.05 |
| 平均正向功率 | 45 | 输出数量与类型 | 4 Voltage, Unipolar; 4 Voltage, Bipolar |
| 采样率（每秒） | 89k | 电源电压范围（典型） | �15 V |
| 精度 - 电压表；电流表 | ±2LSB | 双电源电压（V+/-） | ±15V |
机械参数
| 宽度 | 7.52mm | 高度 | 2.35mm |
| 长度 | 10.28mm | 重量 | 0.014829 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 16 | 封装形式 | 16SOIC |
| 冷却的封装 | SOIC | 总长度 | 10.5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 10.28 x 7.52 x 2.35mm |
| 位数 | 16 | 外壳尺寸-插件 | 2.35(Max) |
| 供应商器件封装 | 16-SOIC | 外壳尺寸-插入件（转换至） | R-2R，电阻串 |
产品信息
| 系列 | DAC7714 | 软件 | SBAS119 |
| 架构 | R-2R | 制造商全称 | Texas Instruments |
| 功能框图 | fbd_sbas119.gif | 使用的IC/零件 | View |
| 其他规格 | 10µs | 印刷电路板数量 | 16 |
| A/D转换器数量 | 4 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
