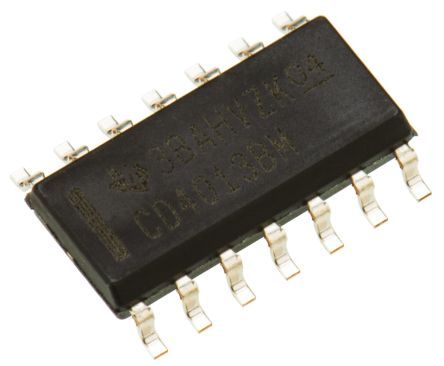

CD4013BM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Flip Flop D-Type Pos-Edge 2-Element 14-Pin SOIC Tube IC D-TYPE POS TRG DUAL 14SOIC CD4013BM, Dual D Type Flip Flop 3 to 18V 14-Pin SOIC Flip Flops Dual CMOS IC, D TYPE, FLIPFLOP, DUAL, 14SOIC IC: digital; D flip-flop; SOP14 CMOS Dual D-Type Flip Flop 96, 双 触发器 IC, 14针 SOIC封装 |
| 分类 |
商业参数
| 其他名称 | 296-12972-5 | 产品类别 | Flip Flops |
| 标准包装数量 | Bulk, Rail / Tube | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 零件状态 | :4013 |
| 抗辐射加固 | No | 高可靠性 | Y |
电气参数
| 输出端 | No | 电压 | 10 |
| 频率 | 24 MHz | 输入类型 | Single Ended |
| 逻辑类型 | CD4000 | 输出类型 | Differential |
| 输入信号 | Single-Ended | 输出信号 | Differential |
| 位数 | 2 | 额定电压 | 3.3|5|9|12|15 V |
| 时钟频率 | 24MHz | 最大频率 | 24 MHz |
| 输出电流 | :6.8mA | 输入数量 | 1 |
| 供电电压 | 3 V ~ 18 V | 输出数量 | 1 |
| 传播延迟 | 50pF | 元件数量 | 2 |
| 最大额定电流 | Military | 输出1频率 | 8 |
| 施密特触发器输入 | Positive-Edge | 最小供电电压 | 18 V |
| 传播延迟时间 | 45ns | 静态电流（最大） | 0.06 |
| 输出高/低电流 | 6.8mA, 6.8mA | 每元件位数 | 1 |
| 输出数量与类型 | 0 | 输出源/灌电流 | 1.5/-1.5 |
| 最大传播延迟 @ V, 最大CL | 300 ns @ 5 V | 传播延迟 tpLH / tpHL（最大） | 130 |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 8.65mm | 重量 | 0.004564 oz |
| 包装方式 | Tube | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :14 | 封装形式 | 14SOIC |
| 冷却的封装 | SOIC | 材料表面处理 | :MSL 1 - Unlimited |
| 包装数量 | 50 | 尺寸/外形 | 8.65 x 3.91 x 1.58mm |
| 位数 | 14 | 开关驱动电平 | Positive Edge |
产品信息
| SPG | 50 | 类型 | D-Type |
| 系列 | CD4013B | 功能 | D-Type |
| 极性 | Inverting, Non-Inverting | 软件 | SCHS023D |
| 基本单元 | :4013 | 技术 | CMOS |
| 触发类型 | Positive Edge | 单元数量 | 1 |
| 复位操作 | Set/Reset | 电路数 | 2 |
| 射频系列/标准 | CD4000 | 使用的IC/零件 | :CD4013BM |
| 其他规格 | :D | ||
环境参数
| 测试温度 | -55 to 125 | 工作温度 | -55 to 125 °C |
