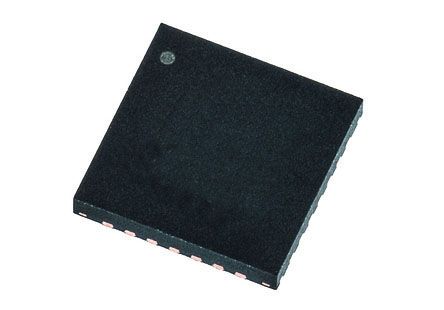

CC2520RHDT
| 制造商 | Texas Instruments Incorporated |
| 描述 | ZigBee/802.15.4 Modules 2507MHz 250Kbps 28-Pin VQFN EP T/R RF Transceiver 2nd Gen 2.4 GHz Zig Bee transceiver IC TXRX RF ZIGBEE 2.4GHZ 28VQFN CC2520RHDT, RF Transceiver 2394 to 2507MHz, O-QPSK, 1.8 to 3.8V 28-Pin QFN EP IC, TRANSCEIVER, RF, ZIGBEE, 28QFN IC, RF TXRX, 2394MHZ TO 2507MHZ, QFN-28 Second generation 2.4 GHz ZigBee/IEEE 802.15.4 RF transceiver Texas Instruments O-QPSK ZigBee 收发器, 2394 → 2507MHz, 1.8 → 3.8 V, 28针 QFN封装 |
| 分类 |
商业参数
| 其他名称 | 296-22996-2 | 产品类别 | RF Transceiver |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | QFN | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| RAM 大小 | 0.75 KB | 数据速率 | :250Kbps |
| 频率 | 2.4GHz | 调制方式 | OQPSK |
| 分辨率 | ISM | 灵敏度 | -98dBm |
| 数据接口 | PCB, Surface Mount | 额定输出功率 | -9dBm ~ 8dBm |
| 额定电压 | 2.5|3.3 V | 数据速率（最大） | 250 Kbps |
| 最大频率 | 2507 MHz | 最低频率 | :2.394GHz |
| 频率范围 | :2.394GHz to 2.507GHz | 供电电压 | 1.8 V to 3.8 V |
| 通道数量 | 2 | 接收电流 | 22.3mA |
| 最大额定电流 | 37.5, 26.3 | 最大触点电流 | 26.3 mA |
| 工作频率 | 2394 MHz | 发射电流 | 25.8mA |
| 最小供电电压 | 3.8 V | 共模瞬态抗扰度（最小） | Extended |
机械参数
| 宽度 | 5mm | 高度 | 0.9mm |
| 长度 | 5mm | 重量 | 0.0002 |
| 带宽 | 2.4GHz | 包装方式 | Reel |
| 引脚样式 | No Lead | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 引脚数 | :28 |
| 封装形式 | 28-VFQFN Exposed Pad | 冷却的封装 | QFN EP |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5 |
| 包装数量 | VQFN EP | 尺寸/外形 | 5 x 5 x 0.9mm |
| 天线连接器 | PCB, Surface Mount | 位数 | 28 |
| 外壳尺寸-插件 | 0.9 | ||
产品信息
| 类型 | Zigbee | 系列 | CC2520 |
| 软件 | SWRS068 | 基本单元 | :2520 |
| 技术 | 6LoWPAN ZigBee | 应用 | AMR, ISM, ZigBee™ |
| 图案编号 | Y | 功能框图 | fbd_swrs068.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 28 |
| 调制或协议 | 802.15.4 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 °C |
| 结工作温度 | 125C | ||
文档与媒体
相关型号
TMP101NA/250
texas instruments
Temp Sensor Digital Serial (2-Wire, I2C) 6-Pin SOT-23 T/R IC TEMP SENSOR DIGITAL SOT-23-6 Board Mount Temperature Sensors Temp Sensor IC, TEMP SENSOR, SMD Temperature Sensor with I2C/SMBus Interface with Alert Function in SOT-23 Temperature sensor SOT-23-6, TMP101, TMP101NA/250, Texas Instruments Texas Instruments , 12 位 温度传感器, ±1°C, 串行I2C、SMBus接口, 6针 SOT-23封装
TMP112AIDRLT
texas instruments
Temp Sensor Digital Serial (2-Wire) 6-Pin SOT T/R Temp Sensor Digital Serial (2-Wire) 6-Pin SOT-563 T/R IC TEMP SENSOR DGTL 5V SOT563 TMP112AIDRLT, 12bit Temperature Sensor ±0.1°C Serial-2 Wire 1.4 to 3.6V 6-Pin SOT Board Mount Temperature Sensors Hi-Prec Lo-Pwr Dig Temp Sensor IC, DIGITAL TEMP SENSOR, 6SOT 1.4V-Capable ±0.5°C Temperature Sensor with Alert Function and I2C/SMBus interface in SOT-563 Temperature sensor SOT-563, TMP112AIDRLT, Texas Instruments , 12 位 温度传感器, ±0.1°C, 串行 - 2线接口, 6针 SOT-553封装
MSP430F2618TPMR
texas instruments
MCU 16-bit MSP430 RISC 116KB Flash 2.5V/3.3V 64-Pin LQFP T/R MCU 16-bit MSP430 MSP430 RISC 116KB Flash 2.5V/3.3V 64-Pin LQFP T/R IC MCU 16BIT 116KB FLASH 64LQFP 16-bit Microcontrollers - MCU 16B Ultra-Lo-Pwr MCU IC, 16BIT MCU, MSP430F2, 16MHZ, 64-LQFP MCU, 16BIT, MSP430, 16MHZ, LQFP-64 16-Bit Ultra-Low-Power MCU, 116kB Flash, 8KB RAM, 12-Bit ADC, Dual DAC, 2 USCI, HW Mult, DMA

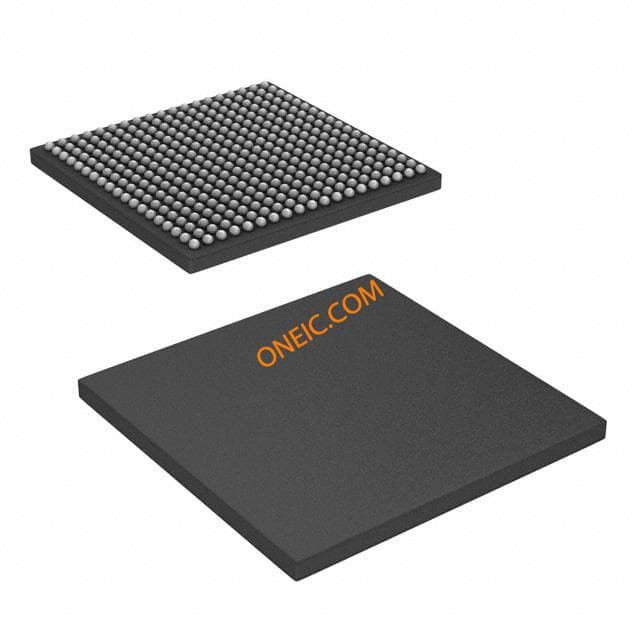

AM1808BZWT4
