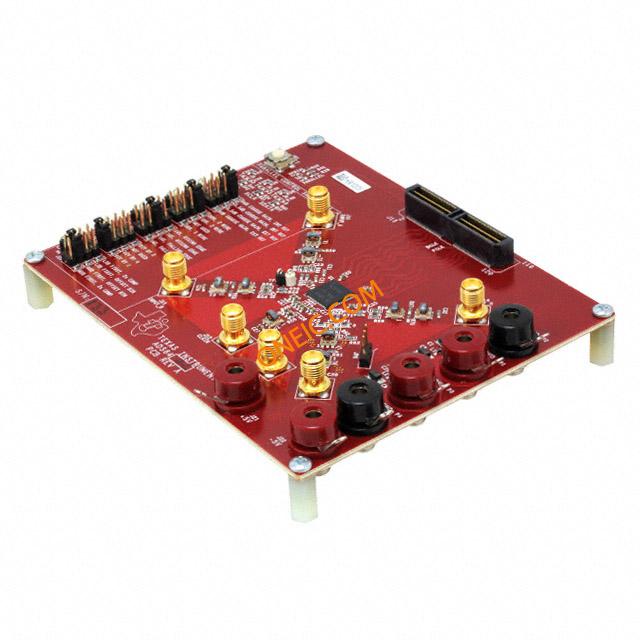

点击放大查看
ADS6442EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Board For ADS6442 Data Conversion IC Development Tools ADS6442 Eval Module EVAL MODULE FOR ADS6442 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 产品类别 | Data Conversion IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | 欧盟RoHS | RoHS Not Applicable |
电气参数
| 接口 | SMA | 输入范围 | 2 Vpp |
| 功率（瓦） | 265mW @ 65MSPS | 数据接口 | Serial, Parallel |
| 位数 | 14 | 采样保持与ADC比率（如1:2） | 1 |
| 供电电压 | 3.3 V to 5 V | ADC/DAC 数量 | 1 |
| 典型功耗（条件） | 265mW @ 65MSPS | 采样率（每秒） | 65M |
机械参数
| 连接器类型 | Serial, Parallel | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | http://www.ti.com/lit/ds/symlink/ads6442.pdf | 技术 | ADC |
| 工具类型/特性 | ADS6442 | 射频系列/标准 | ADS6442 |
| 使用的IC/零件 | ADS6442 | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
ADS6442IRGCT
texas instruments
ADC Quad Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R Quad ADC Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R IC ADC 14BIT 65MSPS 4CH 64VQFN Quad 14-bit 65MSPS ADC with serialized LVDS output Analog to Digital Converters - ADC Quad channel 14bit
ADS6442IRGCRG4
texas instruments
ADC Quad Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R Quad ADC Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 65M 64VQFN Analog to Digital Converters - ADC Quad 14B 65MSPS ADC
TSW1200EVM
texas instruments
High Speed LVDS Deserializer And Analysis System Data Conversion IC Development Tools TSW1200 High Speed ADC LVDS Eval System EVAL SYSTEM ADC LVDS
ADS6442IRGCTG4
texas instruments
ADC Quad Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R Quad ADC Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 65M 64VQFN Analog to Digital Converters - ADC Quad 14B 65MSPS ADC
ADS6442IRGCR
texas instruments
ADC Quad Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R Quad ADC Pipelined 65Msps 14-bit Serial (1-Wire, 2-Wire)/LVDS 64-Pin VQFN EP T/R IC ADC 14BIT SER/PAR 65M 64VQFN Analog to Digital Converters - ADC Quad channel 14bit Quad 14-bit 65MSPS ADC with serialized LVDS output
