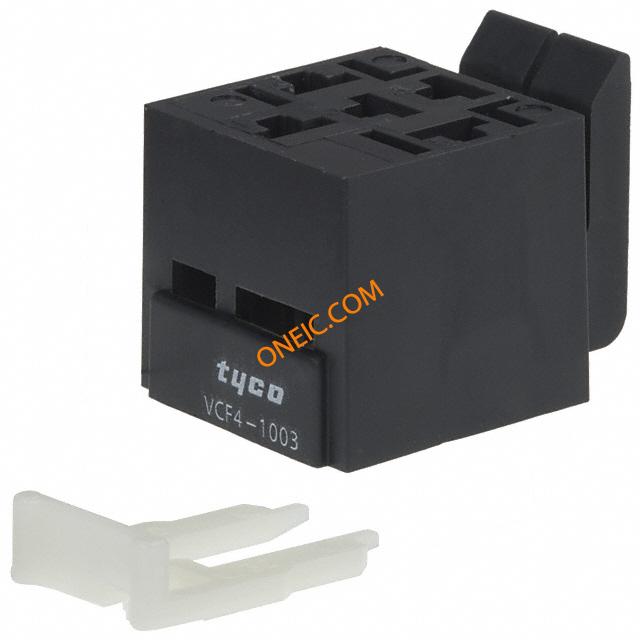

VCF4-1003
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware Bracket mount socket CONN FOR QC VF4-2 VF4-5 RELAYS Conn Relay Socket SKT 1POS Conn Relay Socket SKT 1POS Product Highlights:Bracket Mount SocketVTF SeriesNumber of Poles = 1Terminal Type = Quick-ConnectWithout Grounding Provision VCF4-1003=VC |
| 分类 |
商业参数
| 零件号别名 | 1-1393305-3 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 50 | 工厂包装数量 | 500 |
合规参数
| RoHS | In Transition | ||
电气参数
| 极数 | 1 | ||
机械参数
| 安装类型 | Wiring Harness | 连接器类型 | 支架安装 |
| 安装样式 | Bracket | 端接样式 | Quick Connect |
| 位数 | 5 | 兼容外壳尺寸（如TM-700等） | 插拔式 Mini（带罩）继电器 |
产品信息
| 类型 | Housing | 系列 | VTF |
| 产品特性 | 不包括压接端子。单独订购。, 压接端子料号 1-1393310-8 - AWG 线号 18-20 - Form C 所需数量 - 3, 压接端子料号 1-1393310-9 - AWG 线号 14-16 - Form C 所需数量 - 3, 压接端子料号 2-1393310-0 - AWG 线号 10-12 - Form C 所需数量 - 3 | 产品子类型 | 插座 |
| 附件类型 | Socket | 应用细节 | Use with Mini (Shrouded) and Maxi ISO series relays |
| 适用产品/相关产品 | VF4-5 and VF4-2 Relays | ||
文档与媒体
相关型号
26A1348B
te connectivity / p&b
Quick Disconnect Terminal RCP Terminals ConnContact SKT 1POS 2000 TERM 14-16AWG FOR VCF4-1002/3 TERMINAL;CRMP;QC.250 TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP CrimpTerminal;forMiniIsoRelaySockets;usedforVCF4-1002;16-14AWG TE Connectivity 压接插座 , 6.3 x 0.8mm
26A1348C
TE Connectivity
Terminals TERMINAL 10-12AWG FOR VCF4-1002 TERM 10-12AWG FOR VCF4-1002/3 Quick Disconnect Terminal RCP TERMINAL, FEMALE DISCONNECT 0.25IN CRIMP CrimpTerminal;forMiniIsoRelaySockets;usedforVCF4-1002;12-10AWG TE Connectivity 压接插座 , 6.3 x 0.8mm
VF4-55F11-S01
TE Connectivity / P&B
Automotive Relays RELAY AUTOMOTIVE SPDT 40A 12V Electromechanical Relay SPDT 40A 12VDC 90Ohm Plug-In Electromechanical Relay SPDT 40A 12VDC 90Ohm Plug-In Product Highlights:Nominal Voltage = 12 VDCRated Current @ 85° C = 30/40 Amps.Product Category = Plug-In RelaysWith Mounting Bracket(s)Contact Arrangement = 1 Form C, SPDT, 1 C/O
