点击放大查看

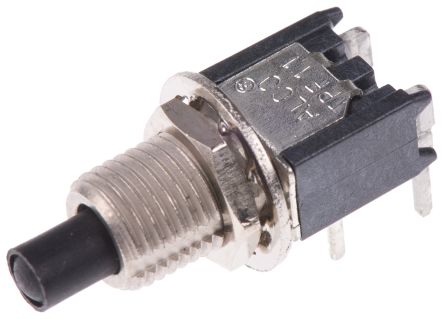

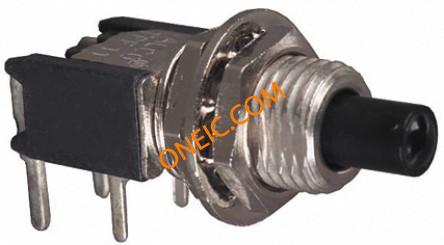

1825100-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Pushbutton Switches Pushbutton switch,PCB,SPST,r/angle mount Switch Push Button N.O. SPST Round Plunger 20VAC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece Switch Push Button N.O. SPST Round Plunger 20VAC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole Loose Piece Product Highlights:Switch - MechanicalNot TactileSingle Pole - Single Throw Configuration (Pole-Throw)Contact Rating = 0.4VAOperating Function = Normally Open, MomentarySearch Keywords:NIC, Network Interface Cards, PC Cards, Lighting Interconnection Products, SWITCH PUSH SPST-NO 0.4VA 20V TE Connectivity 黑色 单刀单掷 - 常开 PCB 瞬间 微型按钮开关, 0.4 A@ 20 V TPF11CGRA004 |
| 分类 |
商业参数
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Compliant | ESD保护 | Without |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 电路 | SPST-NO | 额定电压 | 20V |
| 开关功能 | No | 元件数量 | Single |
| 额定直流电压 | 20 | 最大额定电流 | 0.4VA (AC/DC) |
| 开关功能/额定值 | Momentary | 触点额定电流 | 0.4 VA @ 20 V dc |
| 触点额定值 @ 电压 | 0.4VA | ||
机械参数
| 宽度 | 3.35 mm [ .132 in ] | 高度 | No |
| 密封型 | No | 包装方式 | Bulk |
| 端接方式 | Printed Circuit | 螺纹尺寸 | 1/4-40 UNS-2A |
| 致动器类型 | Without | 安装类型 | Right Angle |
| 端子类型 | Through Hole | 执行器颜色 | Black |
| 连接器类型 | 通孔 | 接触镀层 | Gold over Nickel |
| 安装样式 | Through-Hole | 驱动力 | 50.00 â 400.00 [1.770 â 14.120] |
| 执行器长度 | 4.01 [0.158] | 插入件材料 | 铜合金 |
| 触头材料 | Gold Plated Nickel | 壳体材料 | 聚酯 |
| 包装数量 | Loose Piece | 执行器材料 | Polyamide |
| 端接样式 | PC Pin | 面板开孔形状 | 6.5 (Diameter) |
| 按钮样式/尺寸 | Extended | 导管螺纹尺寸 | 1/4-40 |
| 外壳尺寸-插件 | 螺纹 | 按钮/帽颜色 | Black |
| 筒体内径 | 1/4-40 | 衬套/护套类型 | Threaded |
| 端子螺钉表面处理 | 镍镀金 | 典型触点布局 | SPST-NO |
| 面板开孔尺寸（外形） | Circular - 6.35mm Dia | 外壳与棱镜材料 | Polyester |
产品信息
| 备注 | No center terminal | 类型 | Standard |
| 系列 | TPF | 功能 | Normally Open, Momentary |
| 开关类型 | 按钮 | 照明类型 | No |
| 制造商全称 | Alcoswitch | 产品子类型 | Switch - Mechanical |
| 卡标准 | Pushbutton Switch | 配置 | Single Pole - Single Throw |
| 电气寿命 | 100,000 Cycles | 联数 | No |
环境参数
| 防护等级 | No | 温度额定值 | High |
| 工作温度 | +65°C | ||
相关型号
1825604-1
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, BOOTSEAL PB 1/4-40 BLACK BPA1440004=Boot,Pushbutton
1825599-3
te connectivity / amp
Switch Access Push Button Switch Seal Adapter Loose Piece Pushbutton Switches Switch Access Push Button Switch Seal Adapter Loose Piece Product Highlights:AccessoryNot TactileLoose PieceNot IlluminatedAccessory Type = Seal AdapterSearch Keywords:NIC, Network Interface Cards, PC Cards, Lighting Interconnection Products, SEAL PANEL TINY TPF SERIES BLACK BPT1532004=Boot,Pushbutton
1825610-1
te connectivity / amp
BP1440004=BOOT, PUSHBUTTON Toggle, Pushbutton and Rocker Switches BP1440004=Boot, Pushbutton BP1440004=Boot, Pushbutton Search Keywords:Switches, Knobs, PCB, BOOTSEAL MPA3/MPS/MSPM TP BLACK Accessory Black 1/4-40 Thread Size Pushbutton Switch Boot Seal
1825617-2
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, BTSEAL BLK 1/4-40 MSPM/P3/A3/TP BP201004=Boot,Pushbutton

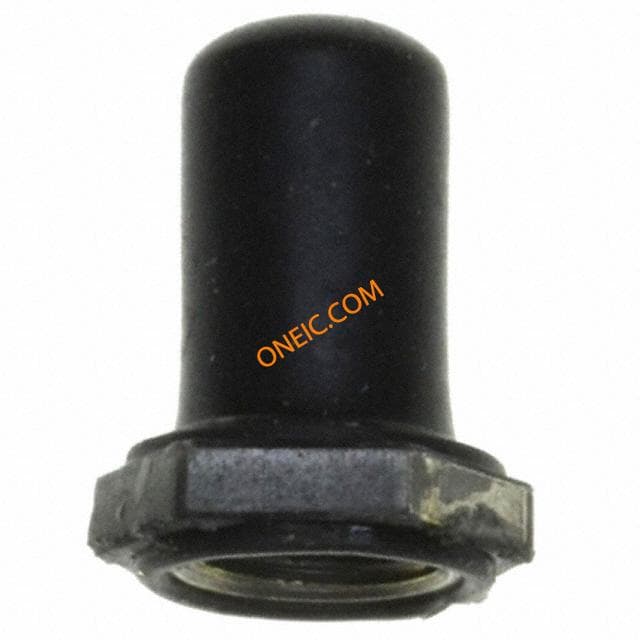

1231/31
Amphenol Corporation
BOOT PUSHBUTTON 1/4-40NS GRAY Switch Accessories SILICONE PUSHBUTTON SWITCH BOOT Boot,Pushbutton,1/4-40ThreadSize,SiliconeRubber,ID.192,Black Sealing boot 3.18 x 11.51 mm 1/4-40 NS grey, 1231/31, APM Hexseal

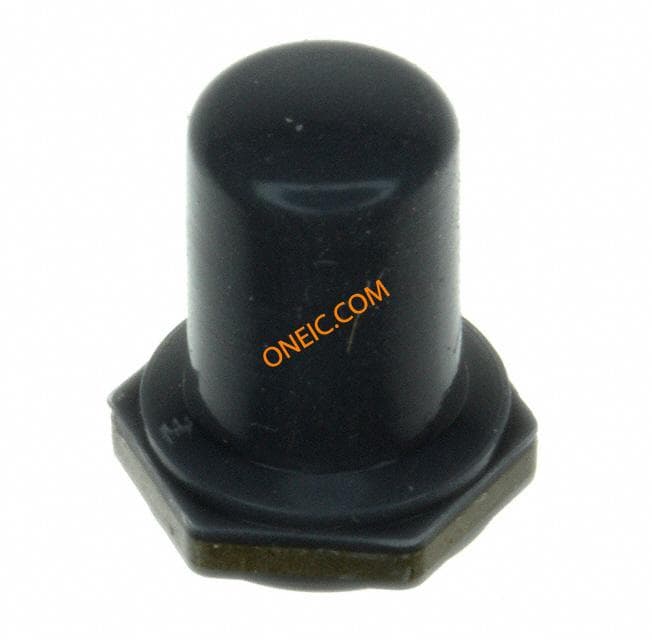

1825610-3
