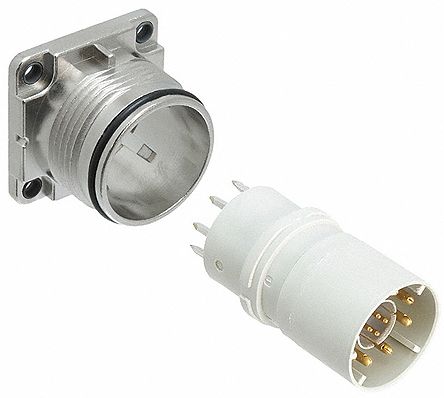

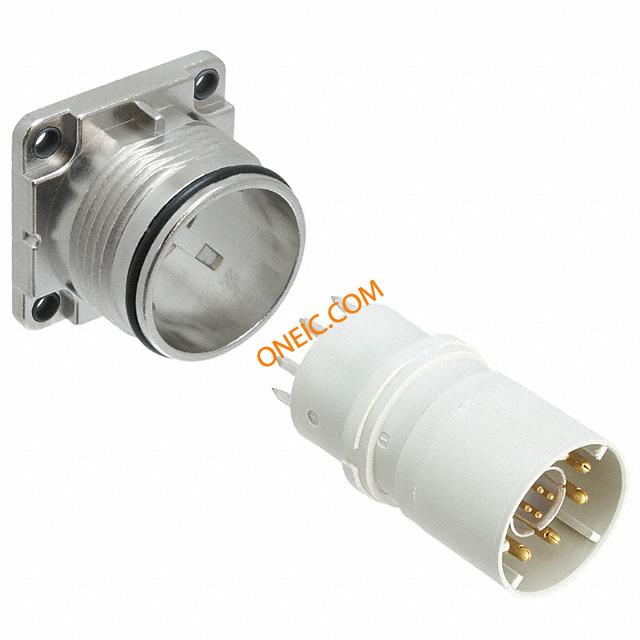

1108846-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN RCPT 12POS PNL MNT SKT HC26.Base Housing-PCB HC26.Base Housing-PCB Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CONNECTOR, CIRCULAR, PLUG, 8POS, PANEL TE Connectivity 12路 直向 圆形连接器 插头 |
| 分类 |
商业参数
| 标准包装规格 | 40 | 标准包装数量 | 40 |
合规参数
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 60V | 最大额定电流 | 10A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 方向 | Keyed | 端接方式 | Crimp |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 插入角度 | :- | 本体材料 | :- |
| 第一触头极性 | :Pin | 位数 | 12 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Zinc Alloy, Nickel Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Panel |
产品信息
| 连接器性别 | :Plug | 系列 | :HC26 Power4Net |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -20°C ~ 80°C |
