PT580615
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT 6A 115VAC MINIATURE PWR RELAY RELAY GEN PURPOSE 4PDT 6A 115V Industrial Relays (General Purpose) Industrial Relays (General Purpose) Product Highlights:PT SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 6 Amps.Monostable Coil Magnetic SystemInput Voltage = 115 VAC PT580615 |
| 分类 |
商业参数
| 其他名称 | 8-1419132-9 | 标准包装规格 | 10 |
| 零件号别名 | 8-1419132-9 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 50 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1 VA |
| 最大功率 | .86, 1 | 额定输出功率 | .5 – 1 |
| 额定电压 | 240 | 线圈电阻 | 4845 Ohms |
| 浪涌电流 | 300 | 供电电压 | 115 VAC |
| 开关电压 | 240VAC - Max | Vgs(th)（最大）@ Id | 34.5 VAC |
| 连接器阻抗 | 4 Form C (4 CO) | 跳闸电流 | 12 |
| 最大额定电流 | 6 | 输出1频率 | 单稳态、交流 |
| 额定电流（安培） | 5 – 10 | 绝缘电阻 | 2500 |
| 平均正向功率 | 1 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 92 VAC |
| 触点额定电流 | 6 A | 输出源/灌电流 | 1mA @ .02V |
| 放电电流（最大）（8/20µs） | 6 | 阳极-阴极电压（Vak）（最大） | 240 |
机械参数
| 宽度 | 22.5 mm | 高度 | 29 mm |
| 长度 | 28 mm | 重量 | 30 g [ 1.058 oz ] |
| 包装方式 | Bulk | 绝缘类型 | 端子和线圈间 5000 V 初始浪涌耐电压 |
| 触点形式 | 4 Form C (4PDT-BM) | 高度（最大） | 25 – 30 |
| 安装类型 | Socketable | 安装样式 | Socket |
| 触头材料 | Silver Nickel | 绝缘高度 | 3 – 5.5 |
| 端接样式 | Plug In, QC - 0.110" (2.8mm) | 面板尺寸 | 28 x 22.5 x 29 mm [ 1.102 x .886 x 1.142 in ] |
| 触点数 | 4 | 初级绕组 | UL 线圈绝缘类 F |
| 接触件端接 | Quick Connect | 介电材料 | 2000 |
| 绝缘直径 | 2.5 – 4 | 宽度/横截面 | 20 – 25 |
| 第一连接器安装类型 | 插座 | 护套（绝缘）厚度 | 3 |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | PT |
| 产品特性 | Mechanical Indicator, Test Button | 继电器类型 | General Purpose |
环境参数
| 防护等级 | RTII | 工作温度 | -40°C ~ 70°C |
| 初始介电强度 | 1200 | ||
文档与媒体
相关型号

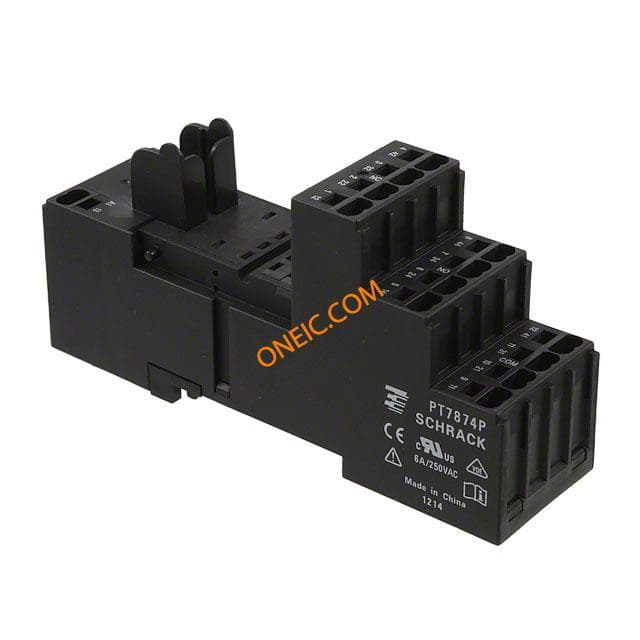

1860000-1
