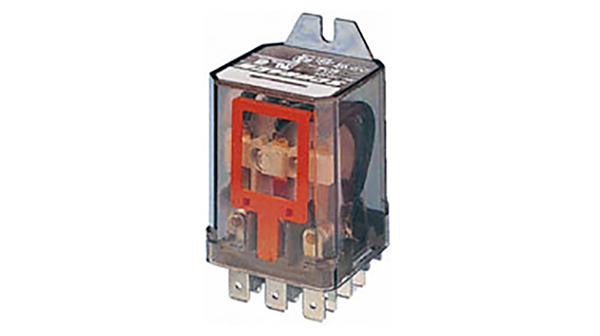

4-1393844-5
| 制造商 | |
| 描述 | General Purpose Relays RMC05024 GPR Panel Plug-In Relays Electromechanical Relay SPST-NO/SPST-NC 30A 24VDC 475Ohm Bracket Mount Electromechanical Relay SPST-NO/SPST-NC 30A 24VDC 475Ohm Bracket Mount Product Highlights:RMC/D SeriesContact Arrangement = 1 Form Z, SPST-NO-NC-DB-DM, 1 N/O+N/C Double Make/BreakContact Current Rating = 30 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode PowerRelay,1FormZ,SPST-NO-NC-DB-DM,30a Power Relays Coil Voltage: 24 VDC Contact Configuration: 1A + 1C SPST-NO + SPDT Current: 30 Amps Mounting: Bracket Mount Operating Function: Single Side Stable Power relay 24 VDC 1.2 W, 4-1393844-5, TE Connectivity |
| 分类 |
对参数有疑问？问 AI 助手
合规参数
| 无铅定义 | Not relevant for lead free process | 认可国家 | n/a |
| RoHS/ELV合规声明 | Converted to comply with RoHS not ELV directives | ||
电气参数
| 电流 | 30 Amps | 核心类型 | Monostable |
| 线圈功率 | 24 | 电感量 | 475 |
| 输入功率 | 1.2 W | 可见输出 | Without |
| 测试电压 | 6 | 线圈电阻 | 475 |
| 供电电压 | 24 VDC | 开关电压 | 440 VAC |
| 开关电流 | 30 A | 二极管配置 | Without |
机械参数
| 尺寸 | 35.5 x 38.5 x 73.5 mm | 端接方式 | .250 x .032 QC |
| 致动器类型 | DC | 安装类型 | Bracket Mount |
| 触头材料 | Silver Cadmium Oxide | 变压器类型 | RMC05024 |
| 外形尺寸 长x宽x高 | 35.50 x 35.50 x 57.00 [1.398 x 1.398 x 2.245] | 触点数 | 1 NO+1 NC |
| 典型触点布局 | 1A + 1C SPST-NO + SPDT | 供应商器件封装 | Dust Cover |
产品信息
| 类型 | Relays | 功能 | Single Side Stable |
| 极性 | No | 测试按钮 | Without |
| 制造商全称 | 4-1393844-5 | 卡标准 | Power Relay |
| 接线图 | n/a | ||
环境参数
| 工作温度 | -40...+60 °C | ||
