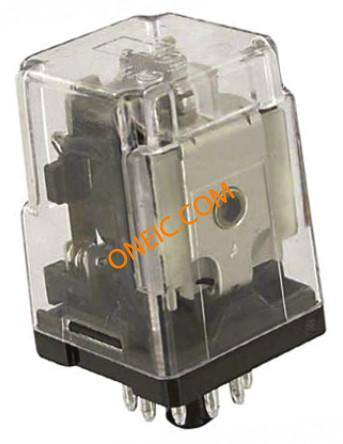

KRPA-14DG-110
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 3PDT 10A 110VDC RELAY GEN PURPOSE 3PDT 10A 110V Relay,E-Mech,GenPurp,3PDT,Cur-Rtg10A Electromechanical Relay 3PDT 10A 110VDC 10KOhm Socket Electromechanical Relay 3PDT 10A 110VDC 10KOhm Socket Product Highlights:KRPA SeriesContact Arrangement = 3 Form C, 3PDT, 3 C/OContact Current Rating = 10 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 3PDT, 110VDC, 10A, PLUG IN Relay;E-Mech;GenPurp;3PDT;Cur-Rtg10A;Ctrl-V110DC;Vol-Rtg120/28AC/DC;Plug-In KRPA-14DG-110=KRPA |
| 分类 |
商业参数
| 交货时间 | 91 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 8-1393104-1 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 00000000 | 零件状态 | 8-1393104-1 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.2 W |
| 量程（°/s） | :TE - KRPA Series | 线圈电流 | 11.5 mA |
| 额定电压 | 240VAC | 线圈电阻 | 10000 Ohms |
| 承载电流 | :10A | 输出电流 | :10A |
| 供电电压 | 110 V | 开关电压 | 240VAC - Max |
| 最大额定电流 | 10A | 触点电压（最大） | :240V |
| 平均正向功率 | 1.2 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 82.5 VDC |
| 触点额定电流 | 10 A | 驱动电压（最大Rds On，最小Rds On） | 110VDC |
机械参数
| 深度 | 1.469in | 宽度 | 37.3 mm |
| 高度 | 34.9 mm | 长度 | 48.8 mm |
| 重量 | 0.073 | 包装方式 | Bulk |
| 端接方式 | Plug-In | 触点形式 | 3 Form C (3PDT-BM) |
| 安装类型 | Socketable | 端子类型 | Plug In |
| 安装样式 | Socket | 引脚数 | 11 |
| 触头材料 | Silver Cadmium Oxide | 尺寸/外形 | 1.922in.Lx1.469in.Wx1.375in.H |
| 端接样式 | Plug In, 11 Pin (Octal) | 接触件端接 | Plug In |
| 典型触点布局 | 3PDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KRPA |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KRPASeries |
| 行业别名 | 8-1393104-1, KRPA-14DG-110 | 应用细节 | General Purpose |
环境参数
| 工作温度 | -45°C ~ 70°C | ||
