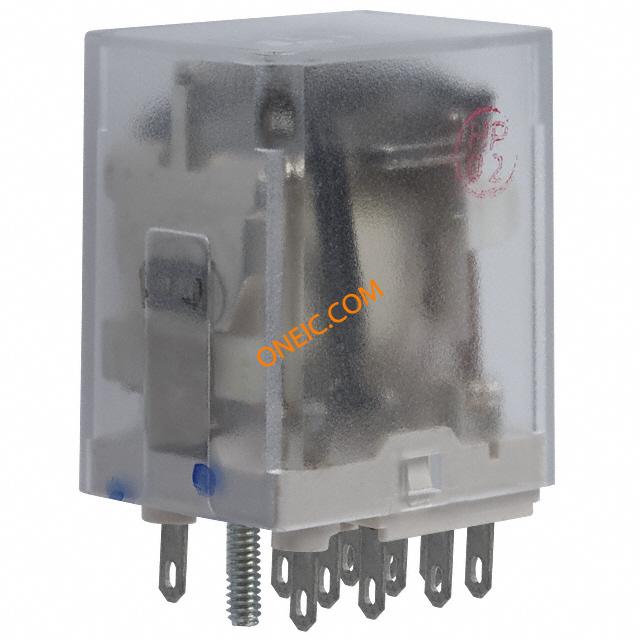

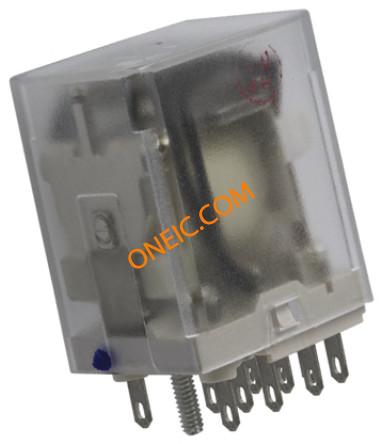

KHU-17D11-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT SCKT MT 24VDC RELAY GEN PURPOSE 4PDT 3A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg3A,Ctrl Electromechanical Relay 4PDT 5A 24VDC 690Ohm Socket Electromechanical Relay 4PDT 5A 24VDC 690Ohm Socket Product Highlights:KHU SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 4PDT, 24VDC, 3A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg3A;Ctrl-V24DC;Vol-Rtg120/28AC/DC;Solder KHU-17D11-24=KH |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 4-1393123-1 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364110 | 零件状态 | 4-1393123-1 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 850 mW |
| 量程（°/s） | :TE - KHU Series | 线圈电流 | 37.5mA |
| 释放时间 | 6ms | 额定电压 | 240VAC |
| 线圈电阻 | 650 Ohms | 承载电流 | :3A |
| 输出电流 | :5A | 供电电压 | 24 V |
| 开关电压 | 240VAC - Max | 最大额定电流 | 3A |
| 触点电压（最大） | :240V | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC | 触点额定电流 | 3A |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | ||
机械参数
| 深度 | 0.858in | 宽度 | 21.8 mm |
| 高度 | 34.9 mm | 长度 | 28.2 mm |
| 重量 | 0.032 | 包装方式 | Tray |
| 端接方式 | Solder | 触点形式 | 4 Form C (4PDT-BM) |
| 安装类型 | Socketable | 端子类型 | Solder |
| 安装样式 | Socket | 触头材料 | Silver |
| 尺寸/外形 | 1.111in.Lx0.858in.Wx1.375in.H | 端接样式 | Plug In |
| 接触件端接 | Plug | 典型触点布局 | DPDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KHU |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KHUSeries |
| 行业别名 | 4-1393123-1, KHU-17D11-24 | 应用细节 | General Purpose |
