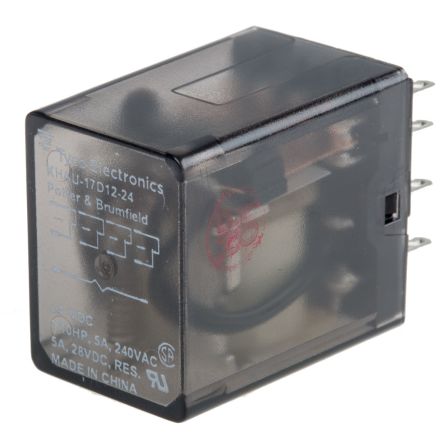

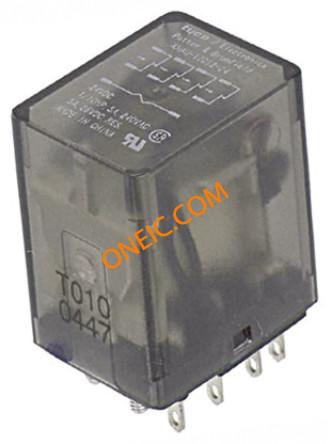

KHAU-17D12-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT SCKT MT 24VDC Relay,E-Mech,GenPurp,4PDT,Cur-Rtg5A,Ctrl Electromechanical Relay 4PDT 5A 24VDC 690Ohm Socket Electromechanical Relay 4PDT 5A 24VDC 690Ohm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 4PDT, 24VDC, 5A, PLUG IN Relay;E-Mech;GenPurp;4PDT;Cur-Rtg5A;Ctrl-V24DC;Vol-Rtg120/28AC/DC;SocketMnt TE Connectivity 4 刀双掷 插入式 非闭锁继电器, 24V KHAU-17D12-24=KH |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 5-1393122-7 | 产品类别 | General Purpose Relays |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364110 | 零件状态 | 5-1393122-7 |
电气参数
| 线圈类型 | Monostable | 量程（°/s） | :TE - KHA Series |
| 额定电压 | 240VAC | 线圈电阻 | 650 Ohms |
| 承载电流 | :5A | 输出电流 | :5A |
| 供电电压 | 24 V | 最大额定电流 | 5A |
| 触点电压（最大） | :240V | 平均正向功率 | 0.9 W |
| 触点额定电流 | 5 A | 数字供电电压 | :28V |
| 驱动电压（最大Rds On，最小Rds On） | 24VDC | ||
机械参数
| 深度 | 0.858in | 宽度 | 21.8 mm |
| 高度 | 34.9 mm | 长度 | 28.2 mm |
| 重量 | 0.032 | 包装方式 | Tray | Box |
| 端接方式 | Solder | 触点形式 | 4 Form C (4PDT-BM) |
| 安装类型 | Socket Mount | 端子类型 | Solder |
| 安装样式 | Socket | 引脚数 | 14 |
| 触头材料 | Silver Cadmium Oxide | 尺寸/外形 | 1.111in.Lx0.858in.Wx1.375in.H |
| 接触件端接 | Plug | 典型触点布局 | 4PDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KHA |
| 功能 | GeneralPurpose | 继电器类型 | ElectroMechanical |
| 制造商全称 | KHASeries | 行业别名 | 5-1393122-7, KHAU-17D12-24 |
| 应用细节 | General Purpose | ||
