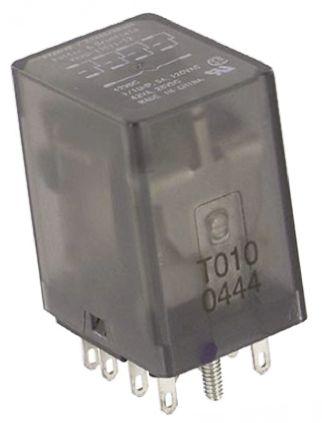

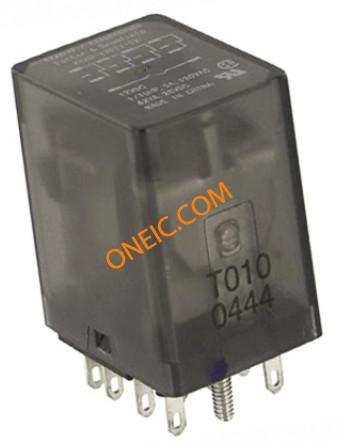

KHAU-17D11-12
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT SCKT MT 12VDC RELAY GEN PURPOSE 4PDT 3A 12V Relay,E-Mech,GenPurp,4PDT,Cur-Rtg3A,Ctrl Electromechanical Relay 4PDT 5A 12VDC 160Ohm Socket Electromechanical Relay 4PDT 5A 12VDC 160Ohm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 4PDT, 12VDC, 3A, PLUG IN Relay;E-Mech;GenPurp;4PDT;Cur-Rtg3A;Ctrl-V12DC;Vol-Rtg120/28AC/DC;SocketMnt TE Connectivity 4 刀双掷 插入式 非闭锁继电器, 12V KHAU-17D11-12=KH |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 4-1393122-3 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364110 | 零件状态 | 4-1393122-3 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 900 mW |
| 量程（°/s） | :TE - KHA Series | 线圈电流 | 75mA |
| 释放时间 | 6ms | 额定电压 | 240VAC |
| 线圈电阻 | 160 Ohms | 承载电流 | :3A |
| 输出电流 | :5A | 供电电压 | 12 V |
| 开关电压 | 240VAC - Max | 最大额定电流 | 3A |
| 触点电压（最大） | :240V | 平均正向功率 | 0.9 W |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 9 VDC | 触点额定电流 | 3A |
| 驱动电压（最大Rds On，最小Rds On） | 12VDC | ||
机械参数
| 深度 | 0.859in | 宽度 | 21.8 mm |
| 高度 | 34.9 mm | 长度 | 28.2 mm |
| 重量 | 0.041 | 包装方式 | Tray | Box |
| 端接方式 | Solder | 触点形式 | 4 Form C (4PDT-BM) |
| 安装类型 | Socketable | 端子类型 | Solder |
| 安装样式 | Socket | 引脚数 | 14 |
| 触头材料 | Silver | 尺寸/外形 | 1.109in.(Max.)Lx0.859in.(Max.)Wx1.281in.(Max.)H |
| 端接样式 | Plug In | 接触件端接 | Plug |
| 典型触点布局 | 4PDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KHA |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | KHASeries |
| 行业别名 | 4-1393122-3, KHAU-17D11-12 | 应用细节 | General Purpose |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
| 结工作温度 | 70°C | ||
