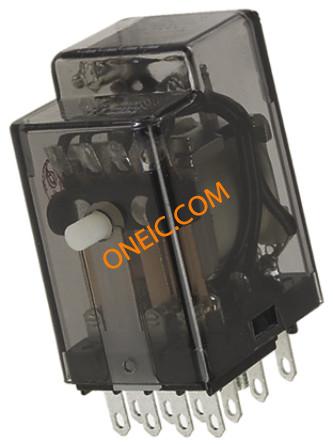

KHAU-17A12H-120
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays 4PDT 5Amp MINIATURE RELAY GEN PURPOSE 4PDT 5A 120V Relay, Industrial, General Purpose, 5A Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC Relay,Industrial,GeneralPurpose,5A,4PDT,SolderTerminals KHAU-17A12H-120=KH |
| 分类 |
商业参数
| 零件号别名 | 3-1393122-2 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.35 VA |
| 最大功率 | 1.35 | 线圈电流 | 11mA |
| 释放时间 | 6ms | 额定输出功率 | 1 – 2 |
| 核心电压 | 1000 – 1500 | 额定电压 | 240 |
| 线圈电阻 | 3900 Ohms | 浪涌电流 | 5 |
| 供电电压 | 120 VAC | 开关电压 | 240VAC - Max |
| 连接器阻抗 | 4 Form C (CO) | 跳闸电流 | 5 |
| 最大额定电流 | 5A | 输出1频率 | 单稳态、交流 |
| 额定电流（安培） | 5 – 10, 16 | 绝缘电阻 | 1500 |
| 平均正向功率 | 1.2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 102 VAC |
| 触点额定电流 | 5A | 输出源/灌电流 | 300mA @ 12V |
| 初始电阻（最小） | 100 | 放电电流（最大）（8/20µs） | 5 |
| 驱动电压（最大Rds On，最小Rds On） | 120VAC | ||
机械参数
| 宽度 | 21.8 mm | 高度 | 34.9 mm |
| 长度 | 28.2 mm | 重量 | 45 g [ 1.587 oz ] |
| 包装方式 | Tray | 触点形式 | 4 Form C (4PDT-BM) |
| 高度（最大） | 30 – 40 | 致动器类型 | AC |
| 安装类型 | Socketable | 端子类型 | Solder |
| 安装样式 | Socket | 触头材料 | Silver Cadmium Oxide |
| 端接样式 | Quick Connect | 触点数 | 4 |
| 初级绕组 | UL 线圈绝缘类 B, 氖管指示灯, 电气指示灯 | 接触件端接 | Terminals |
| 介电材料 | 1500 | 宽度/横截面 | 20 – 25 |
| 典型触点布局 | 4PDT | 第一连接器安装类型 | 插座 |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KHA |
| 产品特性 | Neon Indicator, Test Button | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 应用细节 | General Purpose |
环境参数
| 动作时间 | 13ms | 防护等级 | RTI |
| 工作温度 | -45°C ~ 70°C | 初始介电强度 | 1000 |
