KHAU-17A11N-120

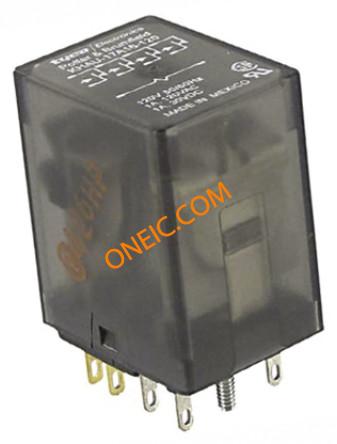

点击放大查看

KHAU-17A11N-120

制造商
TE Connectivity Ltd.
描述General Purpose Relays 4PDT NEON IND 120VAC RELAY GEN PURPOSE 4PDT 3A 120V Relay,E-Mech,GenPurp,4PDT,Cur-Rtg3A,Ctrl Relay;E-Mech;Gen Purp;4PDT;Cur-Rtg 3A;Ctrl-V 120AC;Vol-Rtg 120/28AC/DC;Solder Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC POWER RELAY, 4PDT, 120VAC, 3A, PLUG IN Relay;E-Mech;GenPurp;4PDT;Cur-Rtg3A;Ctrl-V120AC;Vol-Rtg120/28AC/DC;Solder KHAU-17A11N-120=KH
分类
工业电源组件和继电器功率继电器，2安培以上专用继电器
对参数有疑问？问 AI 助手

商业参数

交货时间94 Days子类别Electromechanical Relay
零件号别名2-1393122-6产品类别General Purpose Relays
标准包装数量25工厂包装数量25

合规参数

RoHSRoHS Compliant By Exemption标准UL,CSA,RoHS
海关税号85331000零件状态2-1393122-6

电气参数

线圈类型Monostable线圈功率1.35 VA
量程（°/s）:TE - KHA Series线圈电流11. mA
释放时间6ms额定电压240VAC
线圈电阻3900 Ohms承载电流:3A
输出电流:5A供电电压120 V
开关电压240VAC - Max最大额定电流3A
触点电压（最大）:240V平均正向功率1.2 VA
集电极-发射极饱和电压（最大）@ Vge, Ic102 VAC触点额定电流3 A
驱动电压（最大Rds On，最小Rds On）120VAC

机械参数

深度0.858in宽度21.8 mm
高度34.9 mm长度28.2 mm
重量0.032包装方式Tray | Box
端接方式Solder触点形式4 Form C (4PDT-BM)
安装类型Socketable端子类型Solder
安装样式Socket引脚数14
触头材料Silver尺寸/外形1.111in.Lx0.858in.Wx1.375in.H
端接样式Plug In接触件端接Plug
典型触点布局4PDT

产品信息

类型Ice Cube Style Relay系列KHA
产品特性Neon Indicator功能GeneralPurpose
继电器类型General Purpose制造商全称KHASeries
行业别名2-1393122-6, KHAU-17A11N-120应用细节General Purpose

环境参数

动作时间13ms工作温度-45°C ~ 70°C
