KBP-11AG-120
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DP DUAL COIL 120VAC RELAY GEN PURPOSE DPDT 10A 120V Relay,E-Mech,Latching,DPDT,Cur-Rtg10A Electromechanical Relay DPDT 10A 120VAC 1.03KOhm Socket Electromechanical Relay DPDT 10A 120VAC 1.03KOhm Socket Product Highlights:KBP SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 10 Amps.Bistable Coil Magnetic SystemInput Voltage = 120 VAC POWER RELAY, DPDT, 120VAC, 10A, PLUG IN Relay;E-Mech;Latching;DPDT;Cur-Rtg10A;Ctrl-V120AC;Vol-Rtg120AC;SocketMnt KBP-11AG-120=KA/KB/KC/KR |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 2-1393100-4 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 12 | 工厂包装数量 | 12 |
合规参数
| RoHS | No | 标准 | UL,RoHS |
| 海关税号 | 85364110 | 零件状态 | 2-1393100-4 |
电气参数
| 线圈类型 | Bistable | 灯类型 | Bistable |
| 线圈功率 | 5.3 VA | 量程（°/s） | :TE - KBP Series |
| 线圈电流 | 44 mA | 额定电压 | 120VAC |
| 线圈电阻 | 1030 Ohms | 极数 | :2 |
| 输出电流 | :10A | 供电电压 | 120 V |
| 开关电压 | 120VAC - Max | 最大额定电流 | 10A |
| 触点电压（最大） | :120V | 平均正向功率 | 5.3 VA |
| 集电极-发射极饱和电压（最大）@ Vge, Ic | 102 VAC | 触点额定电流 | 10 A |
| 驱动电压（最大Rds On，最小Rds On） | 120VAC | ||
机械参数
| 宽度 | 61.1 mm | 高度 | 90.4 mm |
| 长度 | 45.2 mm | 重量 | 0.2 |
| 包装方式 | Tray | 端接方式 | Plug-In |
| 触点形式 | 2 Form C (DPDT-BM) | 安装类型 | Socketable |
| 端子类型 | Plug In | 安装样式 | Socket |
| 引脚数 | 11 | 触头材料 | Silver Cadmium Oxide |
| 端接样式 | Plug In, 11 Pin (Octal) | 接触件端接 | Plug In |
| 典型触点布局 | DPDT | ||
产品信息
| 系列 | KBP | 功能 | Latching |
| 继电器类型 | General Purpose | 制造商全称 | KBPSeries |
| 行业别名 | 2-1393100-4, KBP-11AG-120 | 应用细节 | General Purpose |
环境参数
| 工作温度 | -45°C ~ 85°C | ||
文档与媒体
相关型号
1437683-1
te connectivity / buchanan-rdi
Individual Socket Interface Module SKT 11 POS ST Custom Terminal Blocks SOCKET RELAY PCB 11POS Conn Relay Socket SKT ST Panel Mount Conn Relay Socket SKT ST Panel Mount Product Highlights:Interface ModuleModule Type = Individual SocketNumber of Positions = 11Used With 11 Pin Octal RelaySearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
2-1437683-7
te connectivity / buchanan-rdi
Interface Module 11 POS Custom Terminal Blocks INTERFACE MODULE-TERMINAL BLOCK Interface Module 11 POS Product Highlights:Interface Module - Terminal BlockModule Type = Octal Socket11 PositionsSNAPTRACK Channel Series 2TKSearch Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
1-1437683-2
TE Connectivity / AMP
Terminal Block Interface Modules 311BR=ASSEMBLY Custom Terminal Blocks INTERFACE MODULE FOR 11POS SCKT Interface Modules 311BR=ASSEMBLY Octal Socket Interface Module SKT 11 POS ST Octal Socket Interface Module SKT 11 POS ST Search Keywords:DIN rail, ready-to-wire, field wiring, panel mount,
27E928
TE Connectivity / P&B

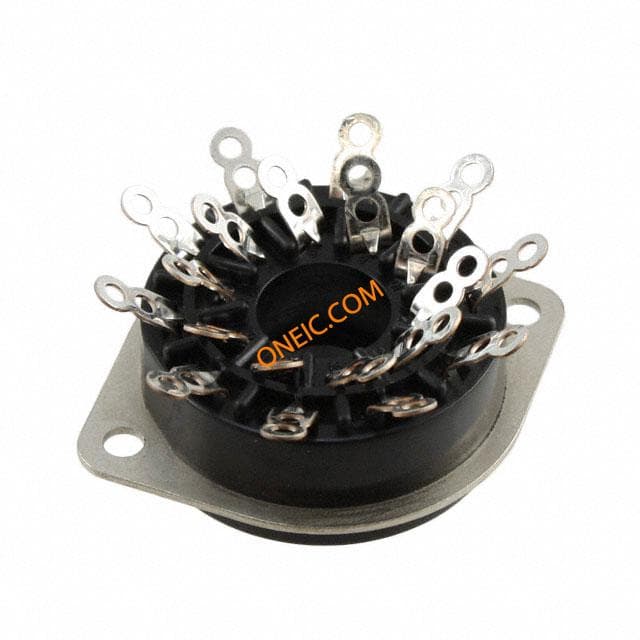

Relay Sockets & Hardware SOCKET 2 THRU 5POLES PANEL MOUNT SOCKET RELAY DP-5P SOLDER Conn Relay Socket SKT Solder ST Thru-Hole Conn Relay Socket SKT Solder ST Thru-Hole Product Highlights:SocketKBP SeriesNumber of Poles = 2 through 5Terminal Type = SolderWithout Grounding Provision RelaySocket,PanelMount,2through5Poles 27E928=SOCKET
