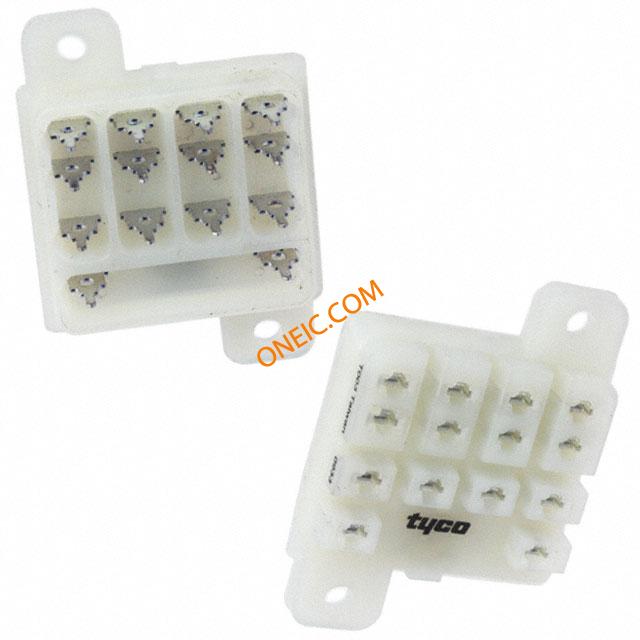

点击放大查看
27E419
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware RELAY SOCKET 4 POLE PC RELAY SOCKET 4 POLE PC Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Product Highlights:SocketKU SeriesNumber of Poles = 4Terminal Type = PCWithout Grounding Provision 27E419=SOCKETS |
| 分类 |
商业参数
| 其他名称 | 4-1393143-0 | 零件号别名 | 4-1393143-0 |
| 产品类别 | Relay Sockets & Hardware | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 极数 | 4 | ||
机械参数
| 安装类型 | Through Hole | 连接器类型 | 印刷电路板 |
| 插入件材料 | 弹簧黄铜 | 触头材料 | 锡 |
| 主要材料 | 尼龙 | 端接样式 | PCB |
| 位数 | 14 | 兼容外壳尺寸（如TM-700等） | KUP 继电器 |
| 典型触点布局 | PC | 端子柱长度 | 5.33 mm [ .21 in ] |
产品信息
| 类型 | Socket | 系列 | KU |
| 产品子类型 | 插座 | 附件类型 | Socket |
| 适用产品/相关产品 | KU Series | ||
