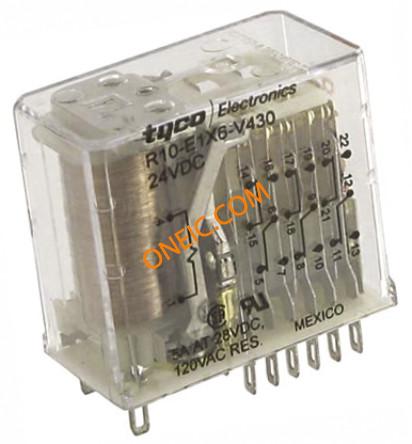

R10-E1X6-V430

点击放大查看

R10-E1X6-V430

制造商
TE Connectivity Ltd.
描述Electromechanical Relay 6PDT 5A 24VDC 430Ohm Plug-In General Purpose Relays 6PDT 5 A 24VDC 3-48 Mounting Stud RELAY GEN PURPOSE 6PDT 5A 24V Relay,E-Mech,GenPurp,6PDT,Cur-Rtg5A,Ctrl Electromechanical Relay 6PDT 5A 24VDC 430Ohm Plug-In Product Highlights:Relay Type = General Purpose, MulticontactRelay Style = GeneralR10 SeriesContact Arrangement = 6 Form C, 6PDT, 6 C/OContact Current Rating = 5 Amps. POWER RELAY, 6PDT, 24VDC, 5A, PLUG IN Relay;E-Mech;GenPurp;6PDT;Cur-Rtg5A;Ctrl-V3-115DC;Vol-Rtg120/28AC/DC;22Pin TE Connectivity 6 刀双掷 非闭锁继电器, 24V R10-E1X6-V430=R10
分类
电容器薄膜电容器金属化聚丙烯薄膜电容器
对参数有疑问？问 AI 助手

商业参数

交货时间42 Days子类别Electromechanical Relay
零件号别名2-1393766-2产品类别General Purpose Relays
标准包装数量Bulk工厂包装数量50

合规参数

RoHSRoHS Compliant标准UL,CSA,RoHS
海关税号85364900零件状态2-1393766-2

电气参数

线圈类型Monostable线圈功率1.4 W
量程（°/s）:TE - R10 Series线圈电流55.81 mA
额定电压30 V线圈电阻430 Ohm
承载电流:5A输出电流:5A
供电电压24 V开关电压120VAC, 30VDC - Max
最大额定电流5 A触点电压（最大）:120V
最小输入电压120 V平均正向功率850 mW
集电极-发射极饱和电压（最大）@ Vge, Ic18 VDC触点额定电流5A
数字供电电压:30V驱动电压（最大Rds On，最小Rds On）24VDC

机械参数

深度0.736in宽度18.7 mm
高度30.2 mm长度29.6 mm
重量0.027包装方式Tray | Box
端接方式Plug-In触点形式6 Form C (6PDT-BM)
安装类型Plug-In端子类型Plug In
安装样式Socket引脚数22
触头材料Silver Cadmium Oxide尺寸/外形1.166in.Lx0.736in.Wx1.189in.H
端接样式Plug In接触件端接Plug In
典型触点布局6PDT

产品信息

类型General Purpose Relay系列R10
功能GeneralPurpose继电器类型General Purpose
制造商全称R10Series行业别名2-1393766-2, R10-E1X6-V430
应用细节General Purpose

环境参数

工作温度-55 to 75 °C

文档与媒体

PDF 文档
1650944.pdf
PDF 文档
NG_DS_1308242_R10_0811-116996.pdf
