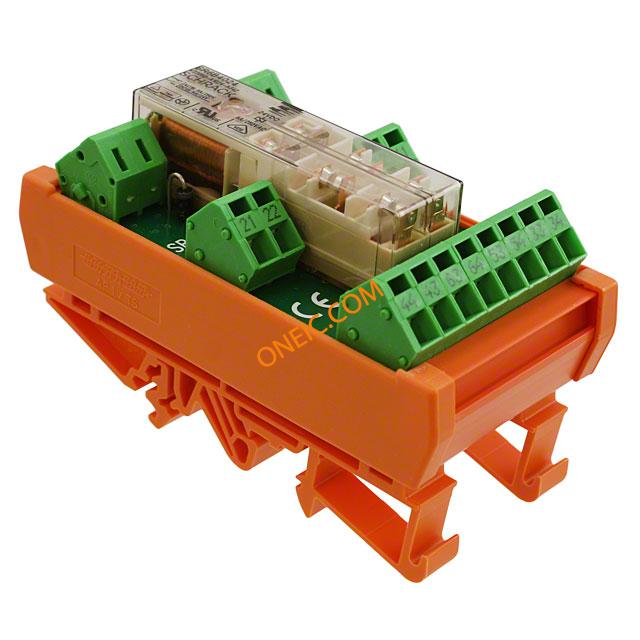

5-1415033-1
| 制造商 | |
| 描述 | Electromechanical Relay 4PST-NO/DPST-NC 8A 24VDC 480Ohm Socket RELAY SAFETY 6PST 8A 24V Safety Relay Coil Voltage: 24 VDC Contact Configuration: 4A + 2B 4PST-NO-DPST-NC Current: 8 Amps Mounting: Din Rail |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| 认可国家 | n/a | RoHS/ELV合规声明 | Converted to comply with RoHS directive |
电气参数
| 电流 | 8 Amps | 线圈类型 | Non Latching |
| 核心类型 | Monostable | 线圈功率 | 1.2 W |
| 线圈电流 | 50mA | 输入功率 | 1.2 mW |
| 线圈电阻 | 480 Ohms | 供电电压 | 24VDC |
| 开关电压 | 250VAC - Max | 元件数量 | Single |
| Vgs(th)（最大）@ Id | 2.4 VDC | 集电极-发射极饱和电压（最大）@ Vge, Ic | 21.6 VDC |
| 触点额定电流 | 8A | ||
机械参数
| 包装方式 | Bulk | 端接方式 | Spring Connectors |
| 触点形式 | 6PST (4 Form A, 2 Form B) | 触头类型 | Single button, forcibly guided |
| 致动器类型 | DC | 安装类型 | DIN Rail |
| 触头材料 | Silver Tin Oxide (AgSnO) | 外形尺寸 长x宽x高 | 45.97 x 86.86 x 53.84 [1.810 x 3.420 x 2.120] |
| 端接样式 | Screwless Clamp | 典型触点布局 | 4A + 2B 4PST-NO-DPST-NC |
| 供应商器件封装 | Sealed | ||
产品信息
| 备注 | Well suited for emergency shut-off, machine control, elevator and escalator control, light barrier control | 类型 | Relays |
| 功能 | Single Side Stable | 极性 | No |
| 可清洗 | No | 继电器类型 | General Purpose with Socket |
| 卡标准 | Safety Relay | ||
环境参数
| 工作温度 | -25°C ~ 50°C | ||
