M24308/2-286
| 制造商 | TE Connectivity Ltd. |
| 描述 | D-Sub Standard Connectors RCPT 15 POS CRIMP CONN D-SUB RCPT HD 15P SER 90 |
| 分类 |
商业参数
| 零件号别名 | 1757824-1 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 1 |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Zinc | 连接器类型 | Receptacle for Female Contacts |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 端接样式 | Crimp | 触点数 | 15 |
| 位数 | 15 | 外壳镀层厚度 | 200µin (5.08µm) |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 1 (DE, E) High Density |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
文档与媒体
相关型号
204351-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts D-SUB SKT 22-28AWG AMPLIMITE - Aerospace & Military CONN SOCKET 22-28AWG CRIMP GOLD Contact female crimp 28-22AWG Amplimite Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To WireSocketContact Size = 22Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT, SOCKET, CRIMP, 28-22 AWG, Connector;Socket;28-22AWG;Crimp;0.054in.(Max.);GoldOverNickel;22 TE Connectivity AMPLIMITE 90 Series系列 尺寸22触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 22 AWG SZ 22 SOCKET CONTACT
207684-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SKT CONT SZ 22 AMPLIMITE - Aerospace & Military CONN CONTACT SOCKET SIZE 22 207684-2 AMPLIMITE,SKT CONT,SZ 22
207684-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SKT CONT SZ 22 AMPLIMITE - Aerospace & Military CONN SOCKET SIZE 22 SERIES 90 Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,SKT CONT,SZ 22
207684-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts AMPLI,SKT CONT, SZ 2 AMPLIMITE - Aerospace & Military CONTACT SOCKET POSTED GOLD Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardSocketTermination (Solder) Post Length = 6.99 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,SKT CONT,SZ 22
204351-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Tape D-Sub Contacts SOCKET CONTACT 22 AMPLIMITE - Aerospace & Military CONN SOCKET 28-22AWG CRIMP 204351-2 Contact SKT Crimp ST Cable Mount Tape Product Highlights:ContactProduct Series = 90Terminate To WireSocketContact Size = 22Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub SOCKET ASSY, SZ 22
207684-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SKT CONT SZ 22 AMPLIMITE - Aerospace & Military AMPLI,SKT CONT, SZ 22 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardSocketTermination Post Length = 4.45 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,SKT CONT,SZ 22
M24308/4-329Z
te connectivity / amp
207684-1
te connectivity / amp
Contact SKT Solder ST Cable Mount Loose Piece D-Sub Contacts AMPLI,SKT CONT, SZ 2 AMPLIMITE - Aerospace & Military CONN SOCKET SIZE 22 GOLD PCB Contact SKT Solder ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardSocketTermination (Solder) Post Length = 6.99 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT, SOLDER, RECEPTACLE, SIZE 22 AMPLIMITE,SKT CONT,SZ 22

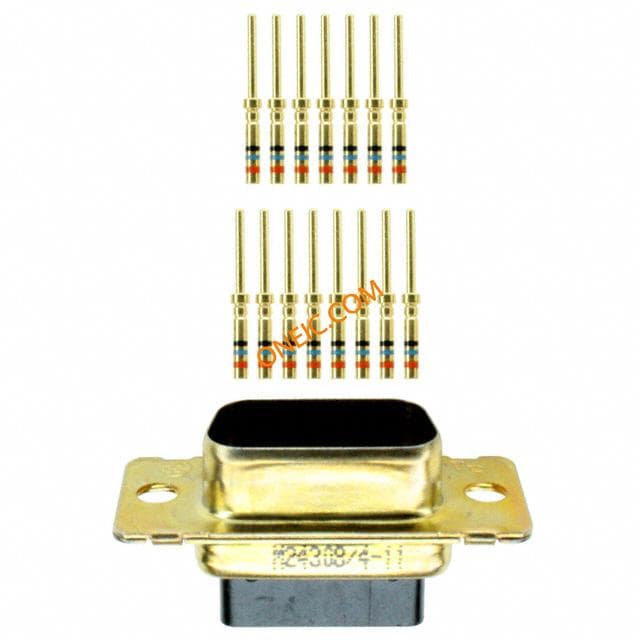

M24308/4-11
