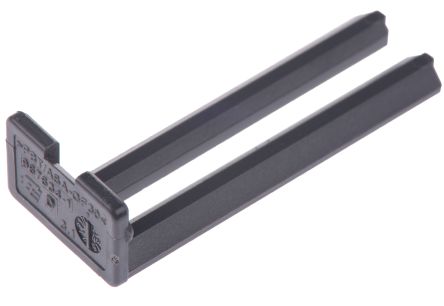

967634-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 18 POS Retainer Housing Straight Polybutylene Terephthalate Gray Timer Connectors CONN TAB HSNG SEC LOCK JPT 18POS JPT Timer 2.8 18 way secondary lock Automotive Connectors SECONDARY LOCK Connector Accessories 18 POS Retainer Housing Straight Polybutylene Terephthalate Gray Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 18Housing Color = GrayNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT SECONDARY LOCK, 2.8 JPT, 18WAY JPTTimer2.818waysecondarylock TE Connectivity 辅助锁, 使用于未密封 2.8mm 插片外壳 2. RETAINER FOR 18POS |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Locks | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 2500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Slate Gray | 密封型 | No |
| 重量 | 0.02 | 触头类型 | Receptacle |
| 外壳颜色 | Gray | 连接器类型 | Junior Power Timer |
| 排数 | 2 | 壳体材料 | PBT/ASA - GF 30 |
| 主要材料 | AutomotiveConnectorAccessory | 位数 | 18 |
| 中心触点材料 | 5.00 [0.197] | ||
产品信息
| 备注 | With Secondary Locking | 类型 | Retainer |
| 系列 | :Junior Power Timer | 产品子类型 | Receptacle Housing |
| 附件类型 | Lock Plate | 射频系列/标准 | 967634 |
| 适用产品/相关产品 | Junior Power Timer Series | ||
