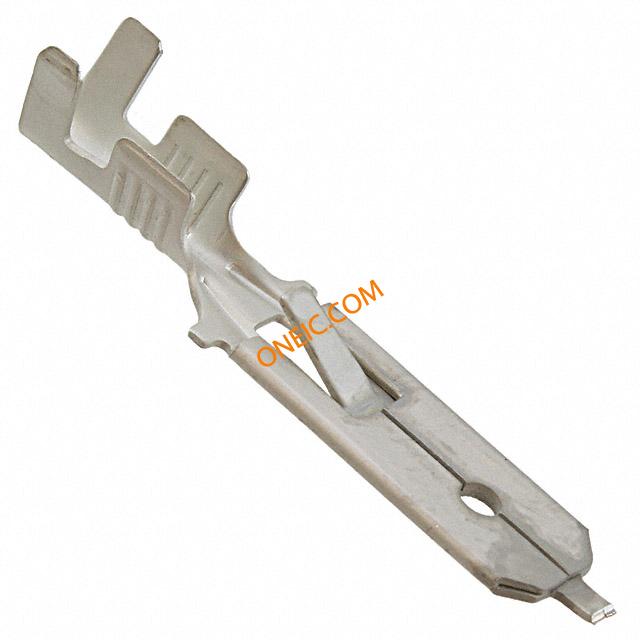

928962-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG M 27.9mm 6.3mm Tin Strip Terminals TAB 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FASTON CRIMP Tab contact, FASTIN-FASTON (REEL) FASTIN-FASTON, male, 6.35x0.81 Quick Disconnect Terminal 13-17AWG M 27.9mm 6.3mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 1.00-2.50² [17-13.5] mm [AWG]Insulation Diameter = 2.20-3.00 [.086-.118] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTIN-FASTON,male,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 17-13 AWG .016 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107147CT |
| 产品类别 | Terminals | 标准包装数量 | 3,000 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 开关功能 | 快速断开插针 | ||
机械参数
| 表面处理 | Tin | 材料（通用） | Phosphor Bronze |
| 包装方式 | Reel | 遮蔽类型 | Unshrouded |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.618" (15.70mm) |
| 导线线规 | 13-17 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 2.5mm² |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Multiple |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 厚度（最大） | 0.41 [0.016] | 触头材料 | Phosphor Bronze |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | With |
| 端接样式 | 公端 | 适用端子尺寸 | 2.1 – 2.9 mm [ .0826 – .114 in ] |
| 接触件尾部长度 | 0.81mm | 绝缘直径 | 2.20-3.00 [.086-.118] |
| 绝缘材料 - 类型 | Yes | 总厚度 | .4 mm [ .016 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 1 µm [ 39.37 µin ] |
| 堆叠高度（配合） | 1.4 mm [ .06 in ] | 线规或范围 - AWG | 13AWG |
| 线规或范围 - mm² | 1.00-2.50² [17-13.5] | 触点镀层厚度 - 柱 | 6.35mm |
产品信息
| 备注 | With locking hole. | 连接器性别 | Male |
| 系列 | FASTIN-FASTON | CAD图纸 | 3D CAD Model |
| 产品子类型 | Tab | ||
