926898-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SPLIT PIN 20-14AWG M-N-LOK Contact,crimp,pin splt,Matenlok,20-14awg Power to the Board SPLIT PIN 20-14 AWG 926898-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP SPLIT PIN, CONTACT, UMNL, 20-14AWG Contact,crimp,pinsplt,Matenlok,20-14awg Contact; male; 0.5÷2mm2; Universal MATE-N-LOK; tinned; crimped Crimp pin Male 20...14 AWG, 926898-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UNIV.M-N-L.PIN |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
机械参数
| 重量 | 0.031 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 导线线规 | 14-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 引脚直径 | :2.18mm | 柱间距 | 6.35mm |
| 安装类型 | crimped | 插针或插孔 | Split Pin |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 封装形式 | in bulk | 触头材料 | Brass |
| 包装数量 | 1000 | 连接器 - 电缆 | contact |
| 端接样式 | Solder Tail | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 绝缘直径 | :3.3mm |
| 线规或范围 - AWG | 20-14 | 线规或范围 - mm² | :2mm² |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :3.3mm |
产品信息
| SPG | 1000 | 连接器性别 | PIN |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Universal MATE-N-LOK Connectors |
文档与媒体
相关型号
58637-2
te connectivity / amp
PRO-CRIMP DIE 20-14 UMNL Punches & Dies PRO-CRIMP DIE 20-14 UMNL TOOL PRO-CRIMP DIE 20-14 UMNL Pro-Crimper Hand Crimping With Die Assembly DIE, SDE, U/MNL
90546-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPR III HND TL ASSY PRO-CRIMPER UNIV M-N-L Crimper,Ratchet,20-14AWG,UniversalMNL TOOL, HAND CRIMP, TYCO UNIVERSAL-MATE-N-LOK CONTACTS Crimper;Ratchet;20-14AWG;UniversalMATE-N-LOKII;90546-2Die;PRO-CRIMPERIII Crimp tool, 90546-1, TE Connectivity
90546-2
te connectivity / amp
Connector Accessories Crimp Die Set Punches & Dies PROCRIMPER DIE SET MATE & LOK II TOOL DIESET 14-20AWG UNI-MATE Die Set,20/14awg (1.52-3.3mm insul.) DIE SET, 20-14 AWG PROCRIMPERDIEASSYUNIVMNL Crimp insert for UMNL, 90546-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 20 → 14 AWG 线规格, 通用 MATE-N-LOK PROCRIMPER DIE ASSY UNIV MNL
539746-2
te connectivity / amp
ErgoCrimp Die Set For Universal Mate-N-Lok Punches & Dies DIE UMNL TOOL DIE SET UNIV MATE-N-LOK DIE SET, FOR SOCKET CONTACT UMNL DIE UMNL

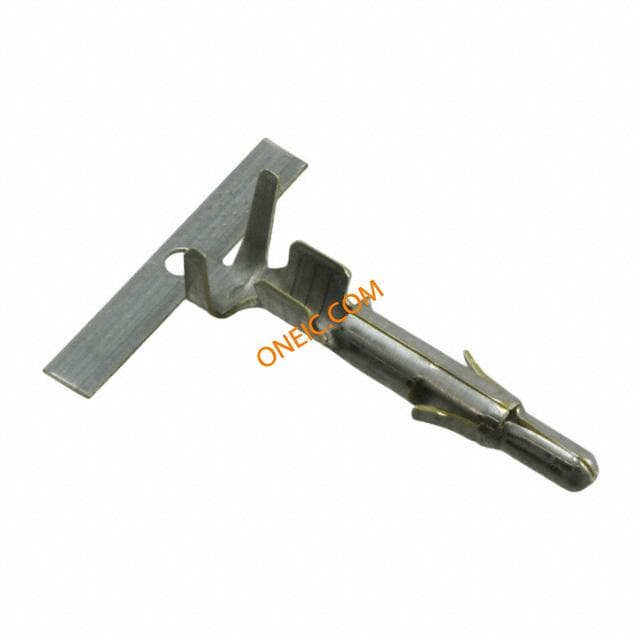

350538-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG UNI MATE-N-LOK Contact,crimp,pin,Mate-n-lok,20-14 awg Power to the Board PIN 20-14 AWG Reel of 2500 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CONTACT, CRIMP, PIN, 20-14AWG, REEL CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG,.0126 TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀锡触点 UMNL PIN 20-14 .0126 PTPBR
