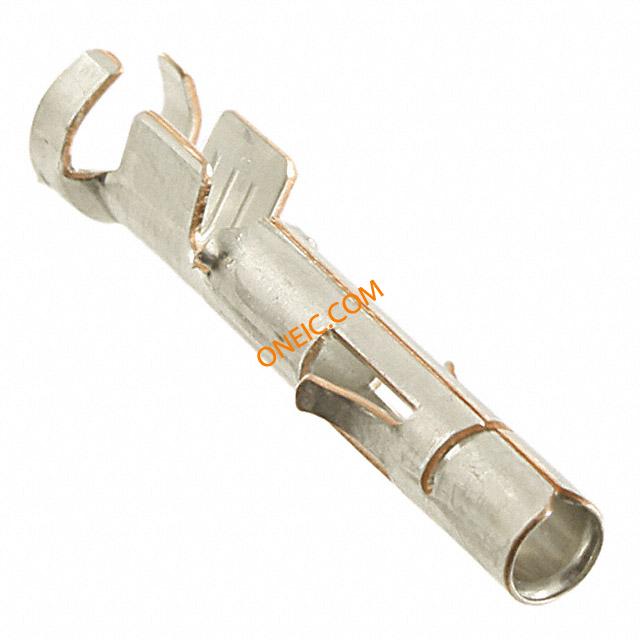

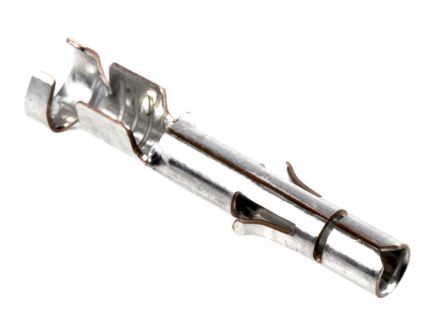

926893-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 20-14AWG MATE-N-LOK Mate-N-Lok contact socket 20-14awg Power to the Board SOCKET 20-14 AWG 926893-3 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 20AWG TO 14AWG, CRIMP Mate-N-Lokcontactsocket20-14awg Contact; female; 0.5÷2mm2; Universal MATE-N-LOK; tinned; crimped TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接 UNIV.M-N-L.SOCKET |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 3.5mΩ |
| 最大额定电流 | 19 A | ||
机械参数
| 重量 | 0.036 | 包装方式 | Bulk |
| 导线线规 | 14-20 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 柱间距 | 6.35mm |
| 安装类型 | crimped | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 安装样式 | for cable | 封装形式 | in bulk |
| 触头材料 | Copper-Tin | 包装数量 | 1000 |
| 连接器 - 电缆 | contact | 端接样式 | Solder Tail |
| 第一触头极性 | Socket (Female) | 外径 | 2.13mm |
| 接触件端接 | Crimp | 线规或范围 - AWG | 20-14 |
| 线规或范围 - mm² | 0.5...2mm2 | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1000 | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | 产品子类型 | Contacts |
| 适配器系列 | Universal MATE-N-LOK | 单元数量 | 1 |
| 适用产品/相关产品 | :Universal MATE-N-LOK Connectors | ||
环境参数
| 可用温度范围 | -55to+105°C | 结工作温度 | 105°C |
文档与媒体
相关型号
58637-2
te connectivity / amp
PRO-CRIMP DIE 20-14 UMNL Punches & Dies PRO-CRIMP DIE 20-14 UMNL TOOL PRO-CRIMP DIE 20-14 UMNL Pro-Crimper Hand Crimping With Die Assembly DIE, SDE, U/MNL
90546-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPR III HND TL ASSY PRO-CRIMPER UNIV M-N-L Crimper,Ratchet,20-14AWG,UniversalMNL TOOL, HAND CRIMP, TYCO UNIVERSAL-MATE-N-LOK CONTACTS Crimper;Ratchet;20-14AWG;UniversalMATE-N-LOKII;90546-2Die;PRO-CRIMPERIII Crimp tool, 90546-1, TE Connectivity
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
90546-2
te connectivity / amp
Connector Accessories Crimp Die Set Punches & Dies PROCRIMPER DIE SET MATE & LOK II TOOL DIESET 14-20AWG UNI-MATE Die Set,20/14awg (1.52-3.3mm insul.) DIE SET, 20-14 AWG PROCRIMPERDIEASSYUNIVMNL Crimp insert for UMNL, 90546-2, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接模具 , 20 → 14 AWG 线规格, 通用 MATE-N-LOK PROCRIMPER DIE ASSY UNIV MNL
539746-2
te connectivity / amp
ErgoCrimp Die Set For Universal Mate-N-Lok Punches & Dies DIE UMNL TOOL DIE SET UNIV MATE-N-LOK DIE SET, FOR SOCKET CONTACT UMNL DIE UMNL
