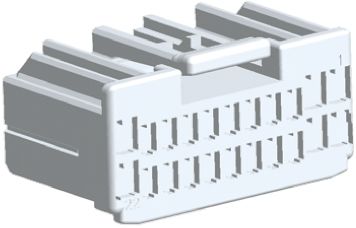

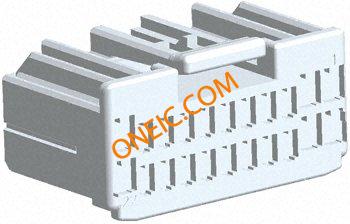

917989-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 22 POS Crimp ST Cable Mount MULTILOCK Connectors and Contacts HYBRID MK-2 PLUG HSG ASSY 22P 0.40/0.70 Hybrid Housing,plug,2row,22w Automotive Connectors HYBRID MK-2 PLUG HSG ASSY 22P MULTILOCK Connectors and Contacts Product Highlights:HousingPlug040/070 Hybrid Plug ConfigurationNumber of Rows = 2Number of Positions = 22Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, 0.40/0.70HybridHousing,plug,2row,22w TE Connectivity 外壳 |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 供电电压 | 12 | 标称电压 | 12 |
| 连接器阻抗 | 否 | ||
机械参数
| 颜色 | White | 间距 | 3, 3.5 |
| 宽度 | 35.2 mm [ 1.386 in ] | 高度 | 18.4 mm [ 0.724 in ] |
| 长度 | 21 mm [ .827 in ] | 锁定类型 | 外壳集成 |
| 包装方式 | Bulk | 出线方向 | 否 |
| 排间距 | 0.205" (5.20mm) | 触头类型 | Female Socket |
| 柱间距 | .118, .138 | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 排数 | 2 | 锁定特性 | Side Lock |
| 壳体材料 | PBT | 安装特性 | 否 |
| 包装数量 | 100 | 面板安装类型 | Without |
| 主要材料 | AutomotiveConnectorAccessory | 触点数 | 22 |
| 接触件端接 | Crimp | 位数 | 22 |
| 连接器 - AC输入 | 1, 1.8 | 触点镀层 - 柱 | .039, .071 |
| 连接器/触点类型 | 040/070 Hybrid | 接触件表面处理 - 配合 | 是 |
| 第二连接器加载位数 | 34, 38, 48, 64, 76 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 极性 | 是 |
| 可密封 | 否 | 可维修 | 是 |
| 编码、键控 | No | 制造商全称 | MultilockSeries |
| 产品子类型 | Housing | 附件类型 | Housing |
| 连接类型 | Wire | 专有名称 | MULTILOCK |
| 应用细节 | Signal | ||
环境参数
| 防护等级 | 其他 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
