点击放大查看

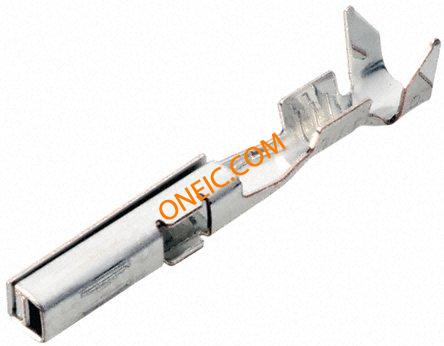

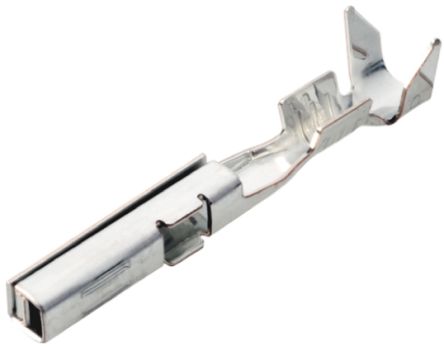

900293-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal J Series [Mark II (+)] CONN SOCKET 18-22AWG TIN CRIMP Econoseal 060,Contact,rcp,0.30-0.90mm2 Automotive Connectors ABS .060 REC CONTACT Econoseal J Series [Mark II (+)] Product Highlights:ContactWire Range = 0.30-0.90² [22-18] mm [AWG]Contact Type = ReceptacleWire Insulation Diameter = 1.40 - 1.70 mmCopper Alloy Contact MaterialSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip Econoseal060,Contact,rcp,0.30-0.90mm2 TE Connectivity Econoseal J 060 Mk II 系列 母 压接接线端子, 压接, 镀锡触点 ABS .060 REC CONTACT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 3,000 | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 插针或插孔 | Socket | 电缆直径 | 0.85mm² |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 连接器样式 | 180° | 触头材料 | Copper Alloy |
| 包装数量 | 3000 | 端接排数 | 压接 |
| 接触件端接 | Crimp | 绝缘直径 | 1.4 – 2 mm [ .055 – .079 in ] |
产品信息
| 连接器性别 | SKT | 系列 | EconosealIII070Series |
| 可密封 | 否 | 适用产品/相关产品 | AutomotiveConnector |
环境参数
| 工作温度 | -22 – 221 | ||
