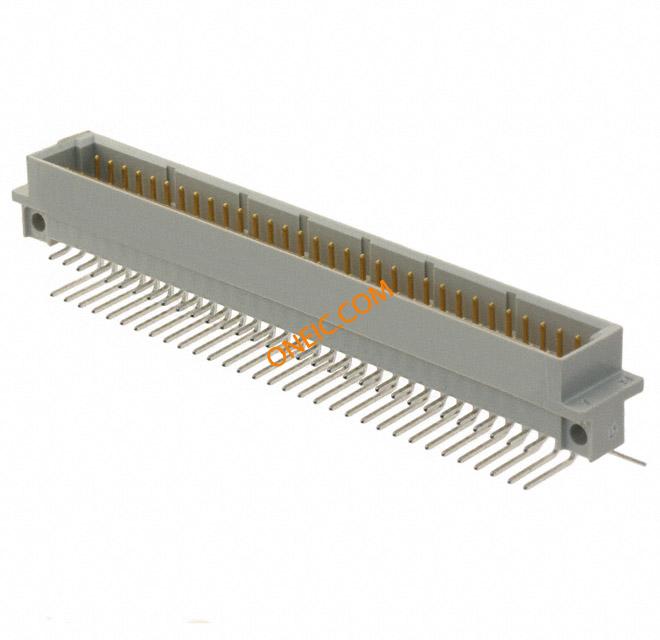

9-1393644-4

点击放大查看

9-1393644-4

制造商
TE Connectivity Ltd.
描述Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG 64POS R/A SOLDER T/H DIN 41612 Connectors PLUG 64P R/A TYPE C Conn DIN 41612 PL 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 64Rows Loaded = A, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, PLUG, THT, R/A, 2.54MM, 64WAY PLUG,9-1393644-4 Multipole plug, C 90° 64-p DIN 41612 2 2 x 32 a + c, 9-1393644-4, TE Connectivity TE Connectivity Eurocard 系列 64 路 2.54mm 节距, C型 C2等级, 3 行 a/c, 直角 DIN 41612 插头, 焊接端接 V42254B1200C963=PC612 MESSERLE
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

产品类别DIN 41612 Connectors标准包装数量Bulk
工厂包装数量400

合规参数

RoHSLead free / RoHS Compliant海关税号85366930
无铅定义Wave solder capable to 240°CRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接触电阻15 mohm最大额定电流1.5 A
最小供电电压250VAC

机械参数

尺寸Standard颜色Gray
深度18.08 mm间距2.54 mm
高度11.1 mm重量0.02
涂层Without包装方式Bulk
端接方式Solder触点尺寸0.60 [.024] Sq.
触头类型Solder Post外壳颜色Gray
尾部长度3 mm安装类型Through Hole
连接器类型Plug, Male Pins接触镀层Gold or Gold-Palladium
安装样式Through Hole排数2
触头材料Copper Alloy壳体材料Thermoplastic Glass Reinforced
总长度94 mm安装特性With
先合后断No端接样式Solder Pin
触点数64接触件端接:Through Hole Right Angle
位数64绝缘材料 - 材质Polybutylene Terephthalate (PBT), Polyester, Glass Filled
端子柱长度3.00 [0.118]

产品信息

类型DIN 41612等级II
样式C连接器性别Plug
系列:Eurocard导向方式Without
产品子类型Type C Connectors连接类型Printed Circuit Board
工具类型/特性No加载位置数64

环境参数

温度No级别、等级2
工作温度-55°C ~ 125°C
