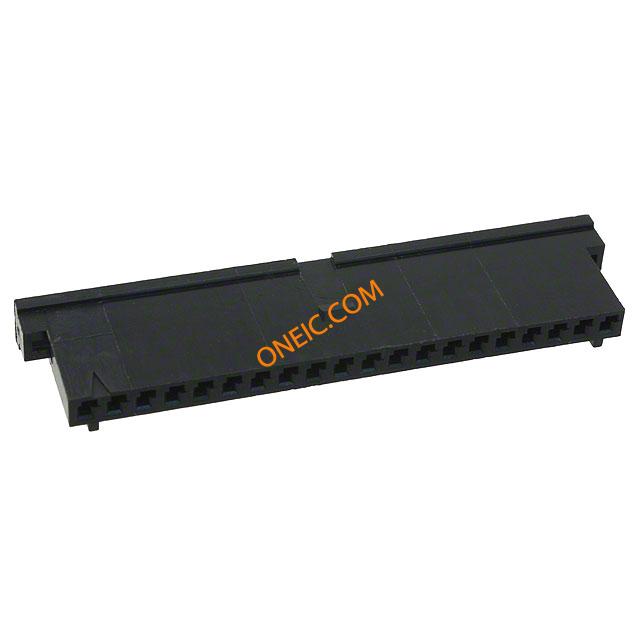

88859-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 020 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors 020 HOUSING FFC RCPT SR 100CL Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 20Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector |
| 分类 |
商业参数
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | Yes |
电气参数
| 额定电压 | 300V | 供电电压 | 300 VAC |
| 输入电阻 | 5000 | 钳位电压 | 720 |
| 连接器阻抗 | 制动器 | 最大额定电流 | 2A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 13.71 mm |
| 间距 | 2.54 mm | 高度 | 4.72 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | FFC |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Standard |
| 排数 | 1 | 连接器用途 | Receptacle |
| 锁定特性 | Detent | 壳体材料 | Thermoplastic |
| 总长度 | 25.14 mm | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.13mm |
| 配接方向 | With | 触点数 | 20 |
| 位数 | 20 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [0.100] | ||
产品信息
| 备注 | Use Extraction Tool No. 91092-1 for round wire contacts. | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Detent Lock |
| 产品子类型 | Housing | 连接类型 | FFC Cable |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
