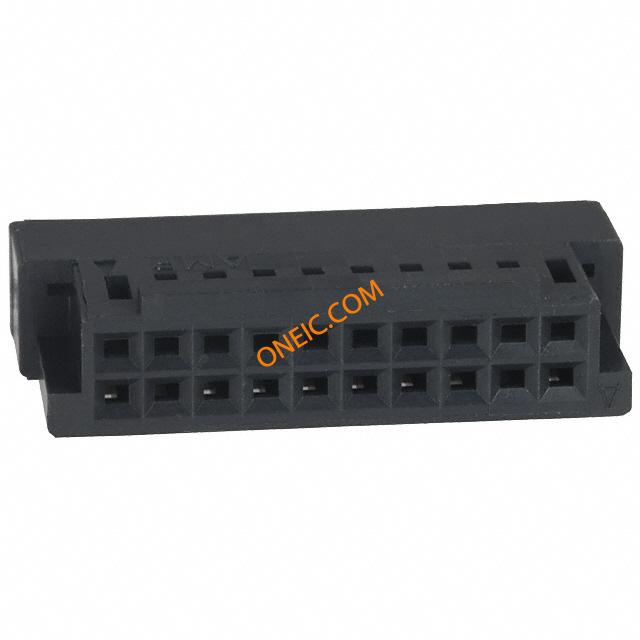

88179-5

点击放大查看

88179-5

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 020 HOUSING FFC RCPT DR 100CL FFC & FPC Connectors 20 HSG RCPT 100CL DR Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Search Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
分类
连接器解决方案FFC/FPC连接器FFC/FPC连接器
对参数有疑问？问 AI 助手

商业参数

其他名称881795产品类别FFC & FPC Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级Yes

电气参数

额定电压300V供电电压300 VAC
输入电阻5000钳位电压720
连接器阻抗制动器窗口最大额定电流2A

机械参数

颜色Black间距2.54 mm
锁定类型带有包装方式Bulk
壳体颜色黑色电缆类型FFC
第二连接器With安装类型Straight
连接器类型Standard排数2
连接器用途Receptacle锁定特性Detent
壳体材料Thermoplastic安装特性Without
包装数量1面板安装类型Without
端接样式插座FFC/FCB厚度0.015mm
配接方向With触点数20
位数20安装孔直径带有
中心触点材料2.54 [0.100]

产品信息

备注Use Extraction Tool No. 91093-1 for round wire contacts.类型Housing
连接器性别RCP产品特性Detent Lock, Positions Stamped
产品子类型Housing连接类型FFC Cable

环境参数

工作温度-65°C ~ 105°C

文档与媒体

在线文档
88179-5?RQPN=88179-5

相关型号

1-103904-9

1-103904-9

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 20POS 30AU Headers & Wire Housings 20 MTE HDR SRRA LATC 160 Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 20Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 MTE HDR SRRA LATCH W/HLDWN

¥12.1040
详情

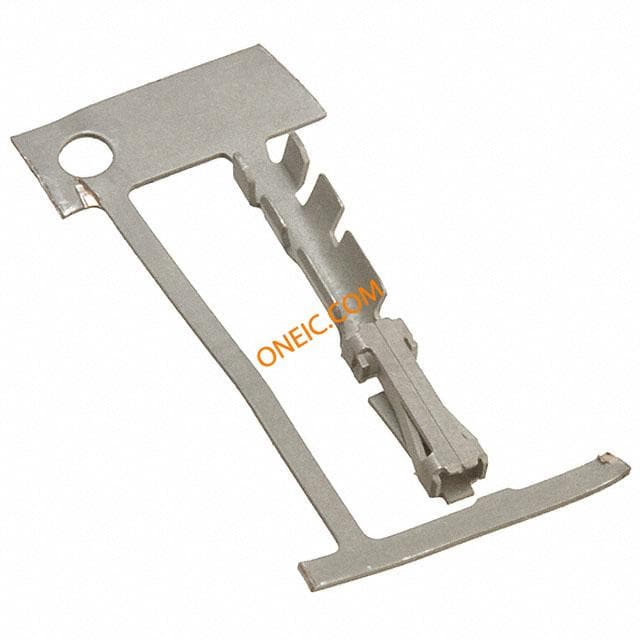

2-86566-0
