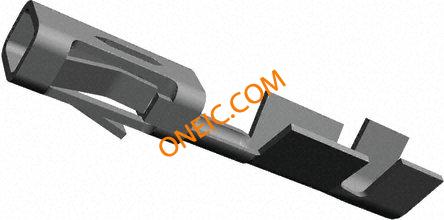

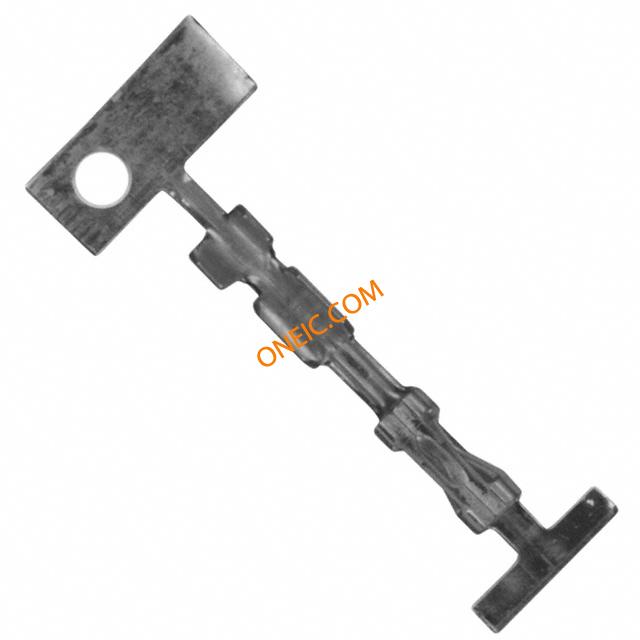

87809-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 22-26AWG TIN CRIMP Ampmodu V contact,receptacle,0.12-0.4mm2 Headers & Wire Housings 22-26 TIN CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 26-22AWG, CRIMP CONTACT,RECEPTACLE,MODV,26-22AWG TE Connectivity AMPMODU MOD V 系列 母 压接接线端子, 压接, 镀锡触点 MOD V RECP PLTD SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 12500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 VAC | 接触电阻 | 12mΩ |
| 最大额定电流 | 3 A | 最小供电电压 | 250VAC |
机械参数
| 深度 | 2.03 mm | 间距 | Not Required mm |
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Bright Tin |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 11.45 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 50µin (1.27µm) | 线规或范围 - AWG | :26AWG |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | Mod V | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Mod V Series Connectors | ||
环境参数
| 工作温度 | +105°C | ||
