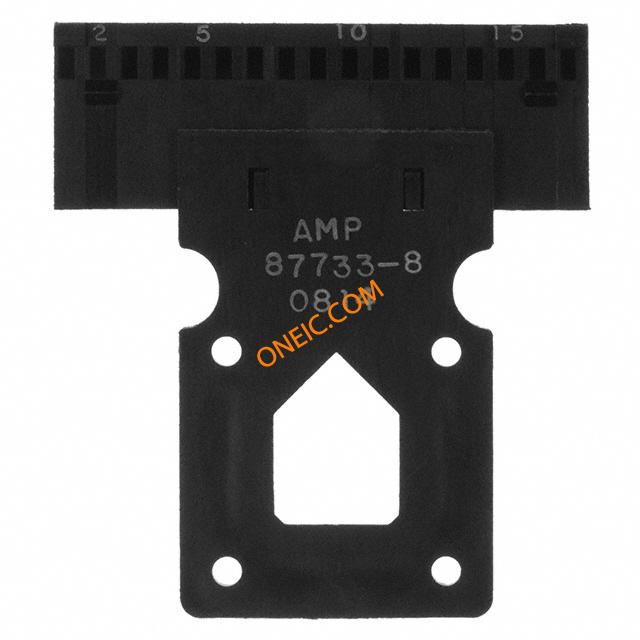

87733-8

点击放大查看

87733-8

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 34POS .100 POL W/STR Headers & Wire Housings MOD IV DUAL ROW 34P .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 34 MODIV HSG W/STR RLF DR MRKD
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格50
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

额定电压250 VAC开关功能Detent Latching
供电电压250 VAC接触电阻12 mΩ
输入电阻5000连接器阻抗压接
最大额定电流3 A保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
高度6.1 mm [ .24 in ]长度43.18 mm [ 1.7 in ]
锁定类型带有包装方式Bulk
壳体颜色黑色导线线规20-32 AWG
排间距0.100" (2.54mm)触头类型Male or Female
安装类型Straight连接器类型Receptacle
紧固类型Locking Ramp安装样式Wire
排数2插入件材料磷青铜
壳体材料Thermoplastic包装数量50
端接样式Crimp第一触头极性Socket (Female)
触点数34接触件端接Crimp
位数34安装孔直径带有
静电放电屏蔽带有

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MOD IV
产品特性Strain Relief产品子类型Receptacles / Sockets - Housings
抽头/步进数2其他规格是

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C
