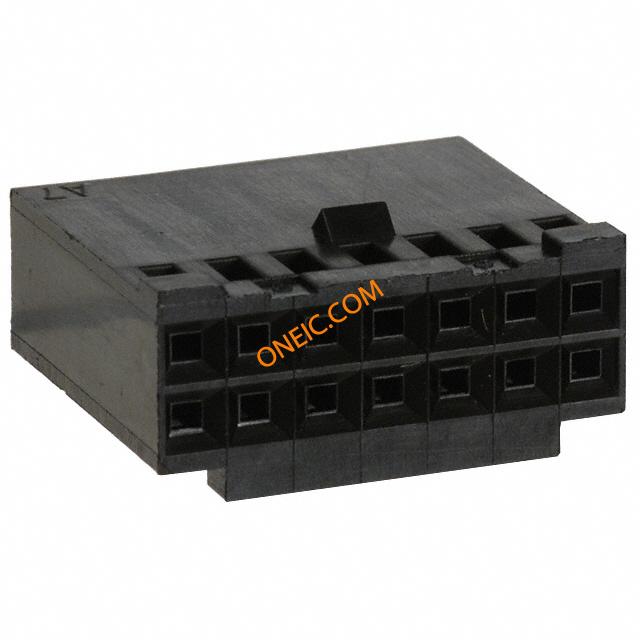

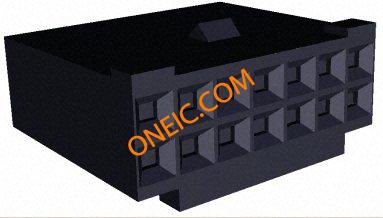

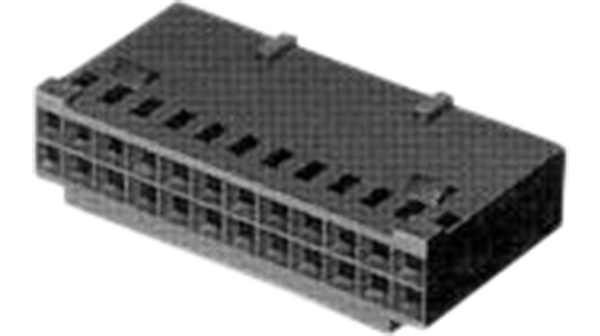

87631-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 14POS .100 POL DUAL Housing FH 14way 2row Rec 2.54mm AmpModu Headers & Wire Housings 14 MODIV HSG .100 POL Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 14Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,14POSITION,DUALROW,POLARIZED Crimp housing Pitch2.54 mm Poles 14 straight / with polarization / with detent latching / Double row AMPMODU MOD IV, 87631-9, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 14 路 直 母 电缆安装 PCB 壳体 14 MODIV HSG COMP DR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | 250 V |
| 开关功能 | Detent Latching | 最大额定电流 | 3 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 长度 | 17.78mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 20-30 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 17.78 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 制造商全称 | AMPMODU/MODIVSeries | 产品子类型 | Receptacles / Sockets - Housings |
| 应用细节 | Board to Board | 适用产品/相关产品 | Centerline Double-Row Connector |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
