87579-9

点击放大查看

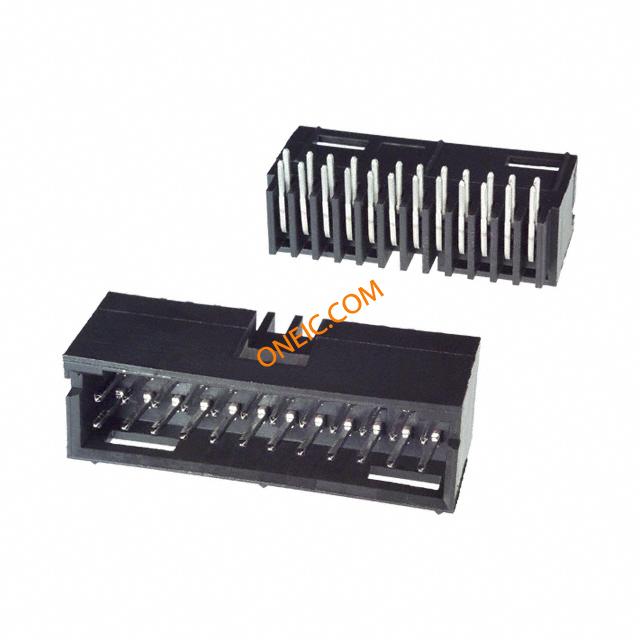

87579-9

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RA .100 24POS TIN Headers & Wire Housings SHROUDED RA DUAL 24 detent windows Conn Shrouded Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded24 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 24 MODII HDR DRRA SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量144

合规参数

RoHSContains lead / RoHS non-compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
最大额定电流3 A绝缘电阻5000 MOhms
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型带有锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器否
安装类型Through Hole, Right Angle连接器类型Header, Shrouded
接触镀层Bright Tin Over Nickel紧固类型Detent Lock
安装样式标准排数2
外壳材料（壳体）4- 面插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
包装数量144面板安装类型通孔
端接样式Through Hole第一连接器类型带罩
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数24端接表面处理带有
位数24柱体长度（配合）8.08 mm
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.43 mm接触镀层厚度100µin (2.54µm)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否接触件镀层 - 插柱（配合端）锡铅：亮光

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers加载位置数All

环境参数

密封等级不带防护等级带罩
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]
结工作温度否

文档与媒体

在线文档
87579-9
