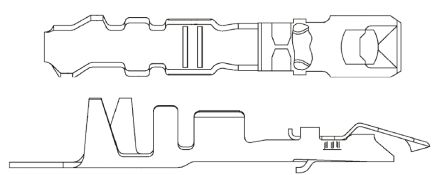

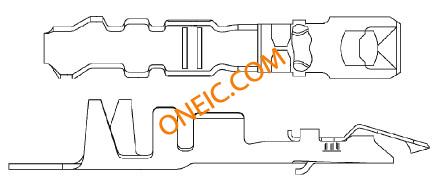

点击放大查看
87278-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN LOCKING CLIP 22-18AWG CRIMP Contact Crimp 22-18AWG AmpModu Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = Locking ClipWire Range = 0.30-0.90² [22-18] mm [AWG]Wire Insulation Diameter = 1.27 - 2.54 mmPhosphor Bronze Contact MaterialGold (15) over Nickel (50) Contact Mating Area PlatingSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU ContactCrimp22-18AWGAmpModu TE Connectivity AMPMODU 系列 母 压接接线端子, 压接, 镀金触点 LOCKING CLIP ASSY 31X62 LP |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | UL E28476 |
电气参数
| 接触电阻 | 12mΩ | 输入电阻 | 5000 |
| 钳位电压 | 1200 | 连接器阻抗 | 压接 |
| 最大额定电流 | 5 | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 电缆直径 | 0.9mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | 1000 | 端接排数 | 压接 |
| 绝缘高度 | 是 | 端接样式 | 插座 |
| 接触件端接 | Crimp | 绝缘直径 | 1.27 – 2.54 mm [ .05 – .1 in ] |
| 镀层厚度（通用） | 镀金 | 接触镀层厚度 | 15µin (0.38µm) |
| 线规或范围 - AWG | 18AWG | ||
产品信息
| 备注 | (*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines., Extraction Tool No. 91104-1 is used for removing individual contacts from connector housings and for detaching contacts from mating posts., These contacts must be crimped in accordance with AMP Specification No. 114-25008 in order to function properly in a connector housing. | 连接器性别 | SKT |
| 系列 | AMPMODU | 产品子类型 | 接触件 |
| 其他规格 | 不锈钢 | 适用产品/相关产品 | PCB Connector |
环境参数
| 工作温度 | +105°C | ||
