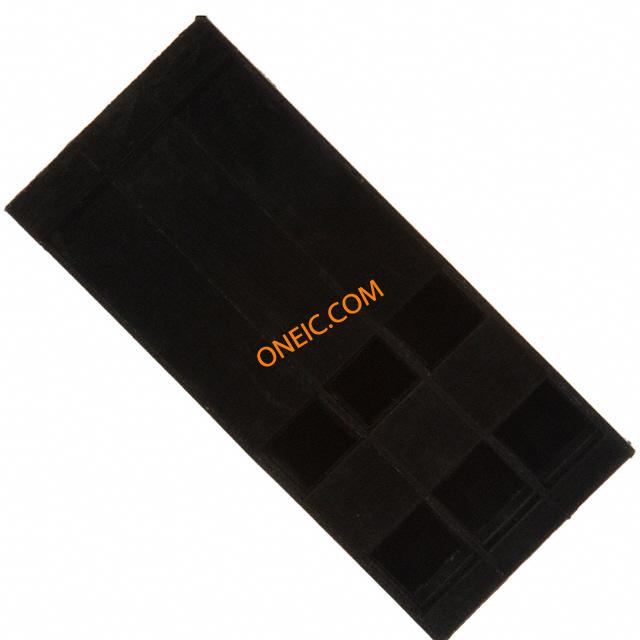

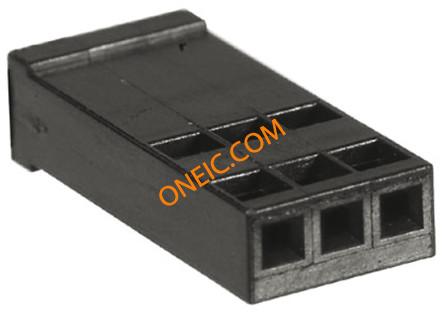

87175-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 3POS .100 LOCKING AMPMODU Receptacle housing 2.54mm 3P Headers & Wire Housings CONN HOUSING 3 POS SINGLE ROW Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM Housing,Connector;LockingClip;Single;3;250VAC;3A;750V 03 LOCKING CLIP HSG SR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULListed,CSACertified,RoHSCompliant,ELVCompliant,UL94V-0HousingFlammability
海关税号	00000000	认证机构	CSA,UL
材料阻燃等级	UL94V-0

电气参数

量程（°/s）	:TE - AMPMODU Series	额定电压	250 V
击穿电压	750V	最大额定电流	3A
绝缘电阻	5000Megohms	最小供电电压	250VAC

机械参数

颜色	Black	深度	17.78 mm
间距	2.54 mm	高度	4.44 mm
长度	0.316in	重量	0
包装方式	Bulk	导线线规	22-30 AWG
排间距	2.54 mm	端接方式	Wire Wrap
触头类型	Female Socket	极化	No
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:-	排数	1
触头材料	:-	壳体材料	PET
总长度	8.02 mm	主要材料	InterconnectSystem
连接器 - 电缆	No	插针孔直径	0.1"
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	3	接触件端接	Crimp
位数	3

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU
产品特性	ClosedEnd	制造商全称	AMPMODU
产品子类型	Receptacles / Sockets - Housings	矩阵（列×行）	0.1in.

环境参数

工作温度

+105°C
