86658-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Solder Terminal 22-24AWG M Gold Loose Piece Flexible Film Contacts CONN PIN ROUND WIRE 22-24AWG FFC & FPC Connectors ROUND WIRE PIN L.P. Flexible Film Contacts Product Highlights:PinContact Type = PinWire Range = 0.20-0.40² [24-22] mm [AWG]2.54 mm CenterlineWire/Cable Type = Round Wire, DiscreteSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, ROUND WIRE PIN L.P. |
| 分类 |
商业参数
| 标准包装规格 | 500 | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 刺破式压接 (IDC) | ||
机械参数
| 间距 | 2.54 mm [ .1 in ] | 包装方式 | Bulk |
| 电缆类型 | Round Wire, Discrete | 导线线规 | 22-24 AWG |
| 触头类型 | Pin | 插针或插孔 | Pin |
| 接触镀层 | Nickel (50) | 插入件材料 | 磷青铜 |
| 总长度 | 2.54 [0.100] | 框架材料 | 镍 |
| 包装数量 | Loose Piece | 端接样式 | 插针 |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 â 1.42 [0.040 â 0.056] |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - mm² | 0.20-0.40² [24-22] |
产品信息
| 制造商 | 1.27, 1.82 | 备注 | Use Extraction Tool No. 91092-1 for end locking slot and Extraction Tool No. 91 |
| 类型 | Solder Terminal | 连接器性别 | M |
| 产品子类型 | Contacts | ||
文档与媒体
相关型号
494032-2
te connectivity / amp

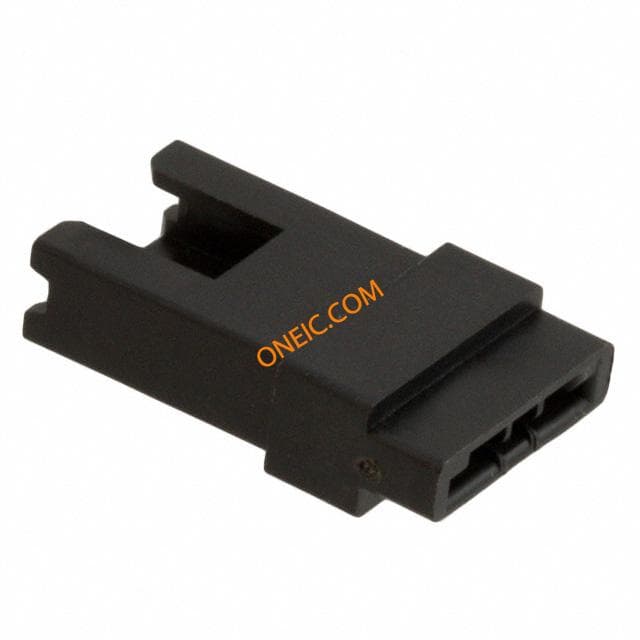

Conn Housing RCP 3 POS 2.54mm Crimp ST Flexible Film Connectors CONN PIN 3POS HOUSING FFC .100 FFC & FPC Connectors 3P PIN HOUSING Conn Housing RCP 3 POS 2.54mm Crimp ST Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 3Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,PINHOUSING,FLEXIBLEFILM,3POS,2.54MM,SINGLEROW 003 HOUSING FFC PIN 100CL SR
