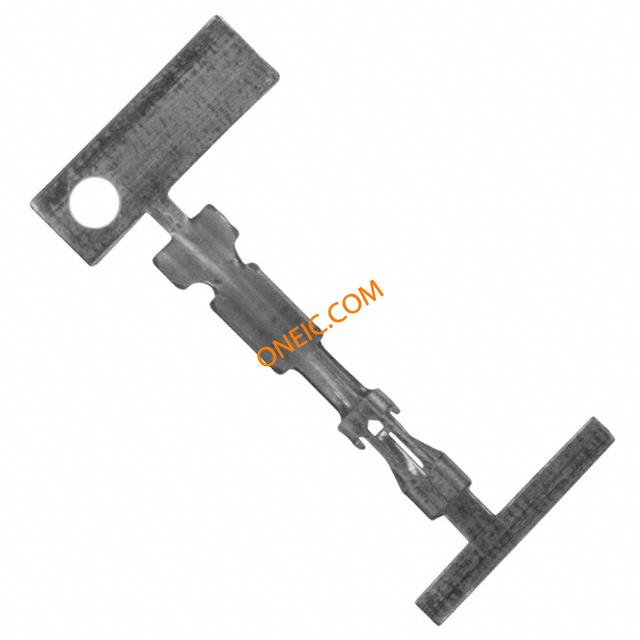

点击放大查看
86492-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG TIN CRIMP AmpModu IV socket Contact tin strip Headers & Wire Housings RECEPTACLE 24-20 AWG Conn Contact RCP 1 POS Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.75 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD IV RECP PLTD SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A3005CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 12500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 VAC | 接触电阻 | 12mΩ |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.002 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin Over Nickel |
| 触头材料 | Beryllium Copper | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 78µin (1.98µm) | 线规或范围 - AWG | :24AWG |
产品信息
| 连接器性别 | SKT | 系列 | MOD IV |
| 产品子类型 | Contacts | 适用产品/相关产品 | MOD IV 1/2 Receptacle Housing, MOD V Receptacle Housing |
环境参数
| 工作温度 | +105°C | ||
