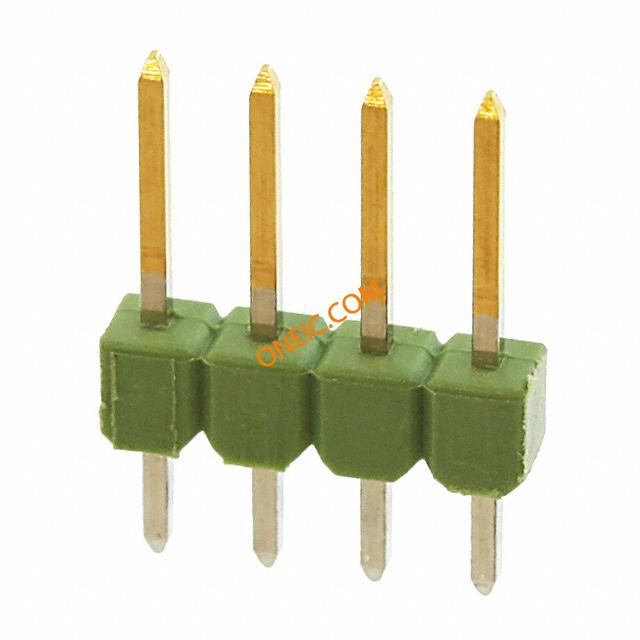

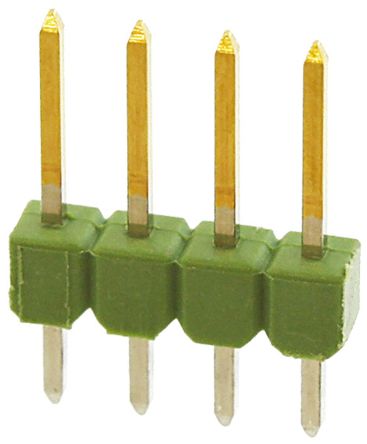

826629-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAWAY 4POS AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 4P SINGLE ROW Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway4 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, 1ROW, 4WAY 4wSinglerowstraightheadergold Pin header 1 x 4P, 826629-4, TE Connectivity TE Connectivity AMPMODU Mod II 系列 4路 2.54mm节距 (1排) 直 引脚管座 , 焊接端接, 3A, 通孔 4P AMPMODU II PIN HSG |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 最大额定电流 | 3A |
机械参数
| 颜色 | Green | 深度 | 2.5 mm |
| 间距 | 2.54 mm | 高度 | 9.5 mm |
| 重量 | 0.026 | 包装方式 | Bulk |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | Without | 外壳颜色 | Green |
| 安装类型 | Vertical | 连接器类型 | Breakaway |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 1 | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic Polyester |
| 总长度 | 10.16 mm | 安装特性 | Without |
| 包装数量 | 1,500 | 面板安装类型 | Without |
| 主要材料 | BoardtoBoardorWiretoBoard | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 柱体长度（配合） | 6.7 mm | 接触长度 - 配合 | 6.70 [0.264] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.20 [0.126] |
| 接触镀层厚度 | 31.5µin (0.80µm) | 外部壳体材料 | :Green, glass filled polyester |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 制造商全称 | AMP |
| 产品子类型 | Header | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 工作温度 | -65C to 105C |
文档与媒体
相关型号
1241152-4
te connectivity / amp
