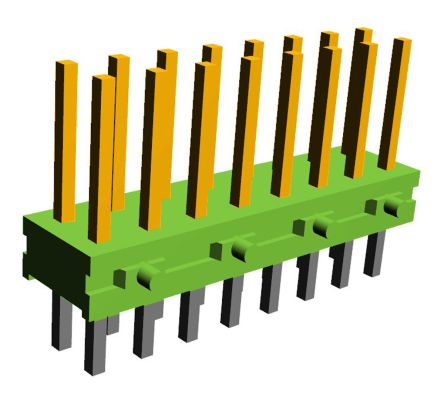

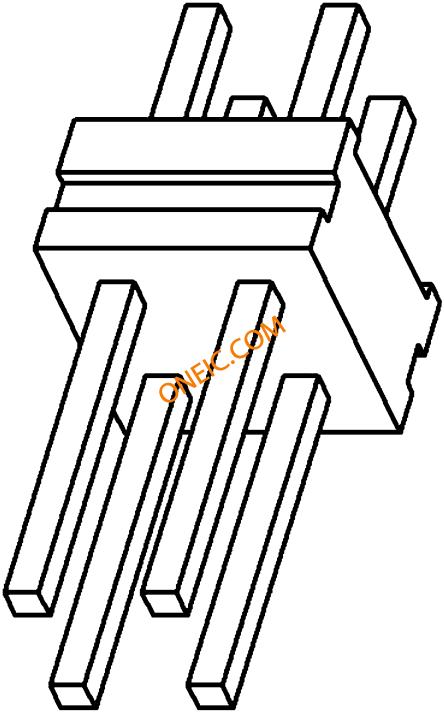

825440-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DL VERT GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2X08P DUAL ROW OD 2 PINHDR 2X08P. OD 2 PINHDR 2X08P. Search Keywords:board to board, AMPMODU, pcb connectors, HEADER, 2ROW, 16WAY AMPMODU2-economyPCBheader2x8W TE Connectivity AMPMODU Mod II 系列 2.54mm节距 16路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 500 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 最大额定电流 | 3A |
机械参数
| 颜色 | Green | 间距 | 2.54 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Vertical | 连接器类型 | Standard |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 安装特性 | Without |
| 包装数量 | 500 | 面板安装类型 | Without |
| 主要材料 | WiretoBoard | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 16 | 接触件端接 | :Through Hole Vertical |
| 位数 | 16 | 柱体长度（配合） | 6.7 mm |
| 接触长度 - 配合 | 6.70 [0.264] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.20 [0.126] | 接触镀层厚度 | 31.5µin (0.80µm) |
产品信息
| 备注 | Headers are side-to-side stackable. | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
